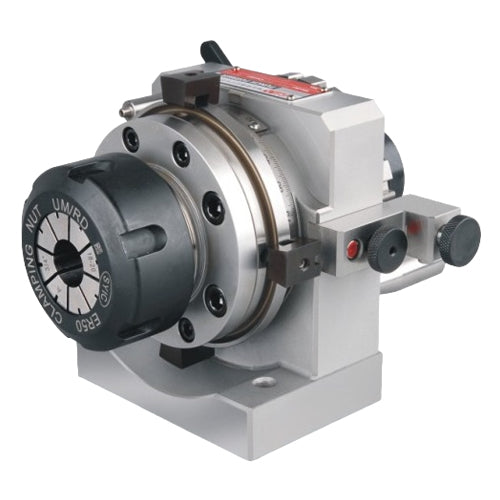

FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm
FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm
FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm
Roll over image to zoom in Click on image to zoom
FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mmFC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mmFC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm

FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm

Gin SKU: PEH-SER50
Price:  POA

► PFH-SER is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.

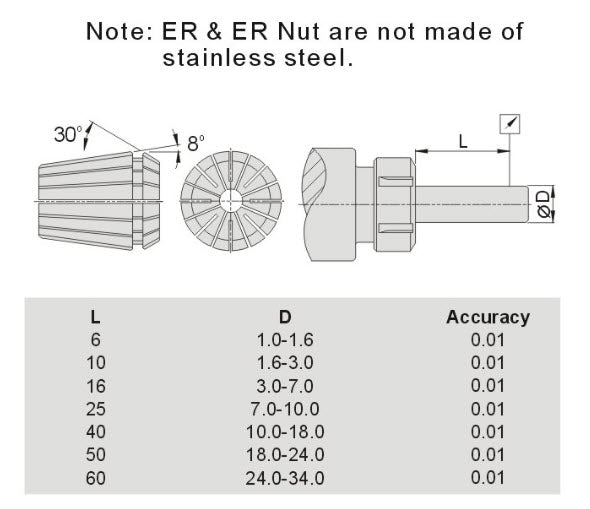

► With ER collets, the flexible range of collet is 1mm.
► Capable collet clamping range: Min. Ø4mm, Max. Ø 20mm
► PFH-SER can rapidly clamp the workpiece and achieving higher stability during processing, no need to adjust the center accuracy.
► Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
► This model is compatible with various ER collets such as ER20,

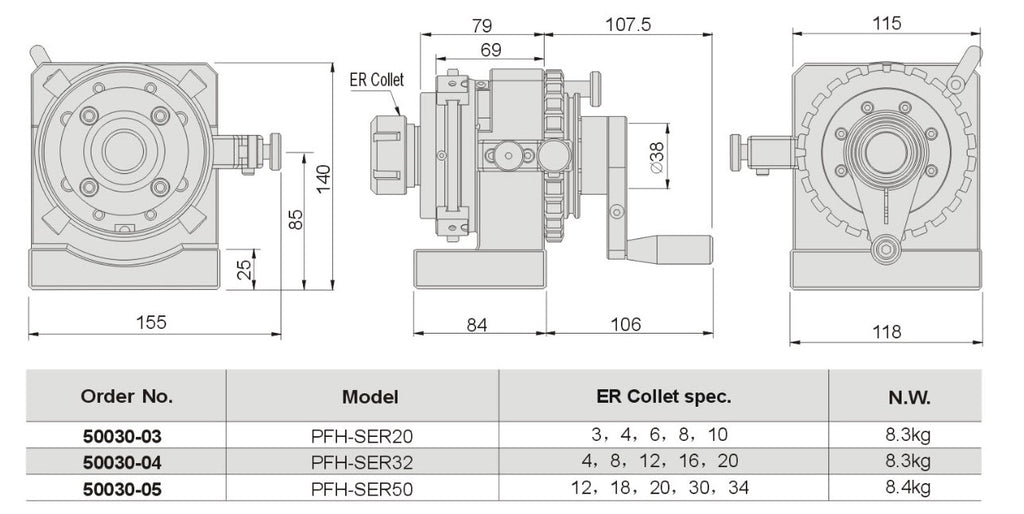

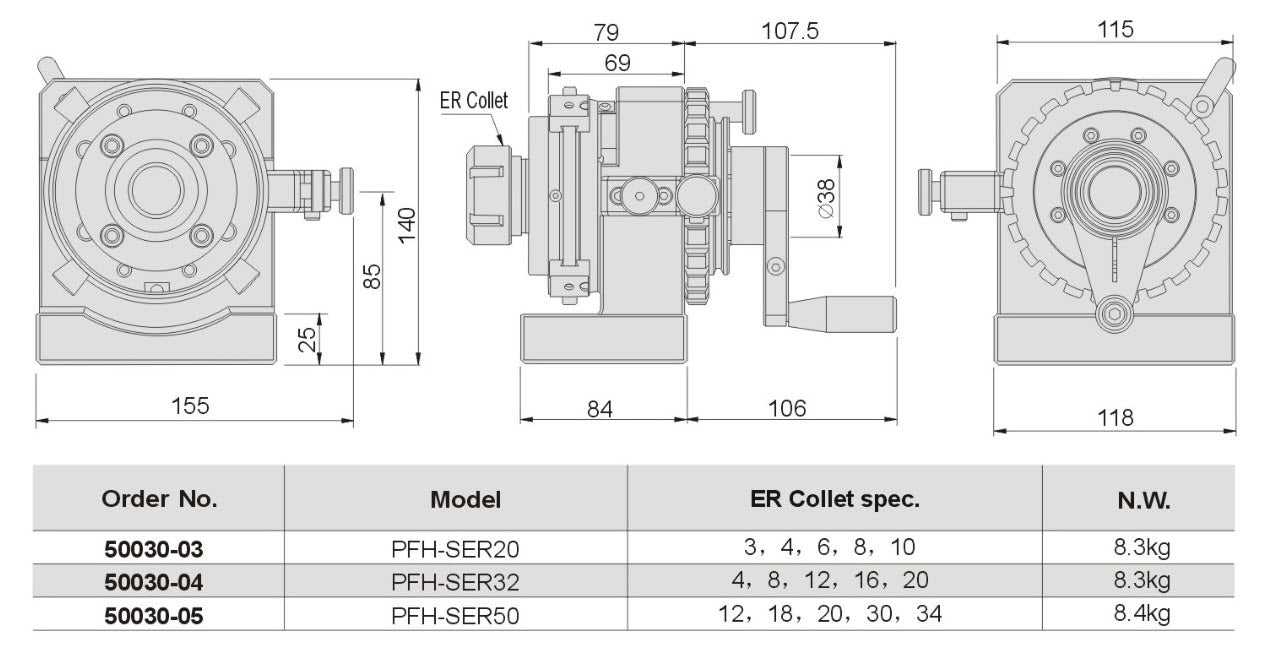

Main parameters:
Center height………………........………85 ± 0.5mm
Indexer tooth q'ty & accuracy………24、15°± 5"
Through hole diameters…………......……Ø 36mm
Rotational accuracy……………......………0.003mm







Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
