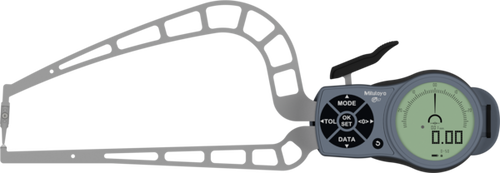

Mitutoyo External Digital Caliper Gauge 209-958 0-50mm ( Kroeplin Equivalent K4R50S)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Digital Caliper Gauge 209-958 0-50mm ( Kroeplin Equivalent K4R50S)

Name: Mitutoyo External Digital Caliper Gauge 209-958 0-50mm ( Kroeplin Equivalent K4R50S)
Brand: Mitutoyo
SKU: 209-958
Price: 837.0 EUR
Availability: InStock

MitutoyoSKU: 209-958

Price:

€837.00 €1,116.00

Quantity:

Range: 0-50mm (0-1.97″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.05mm (0.002″)
Repeatability: 0.03mm (0.001″)
Measuring depth: 169mm
Type of measuring contact moveable: Chisel R 0.75mm
Measuring contact moveable: 30mm
Type of measuring contact fixed: HM-Ball Ø 3mm
Measuring contact fixed: 4.3mm
Min measuring force: 0.8N
Max measuring force: 1.7N
IP67 protection: Water, coolant & dust resistant

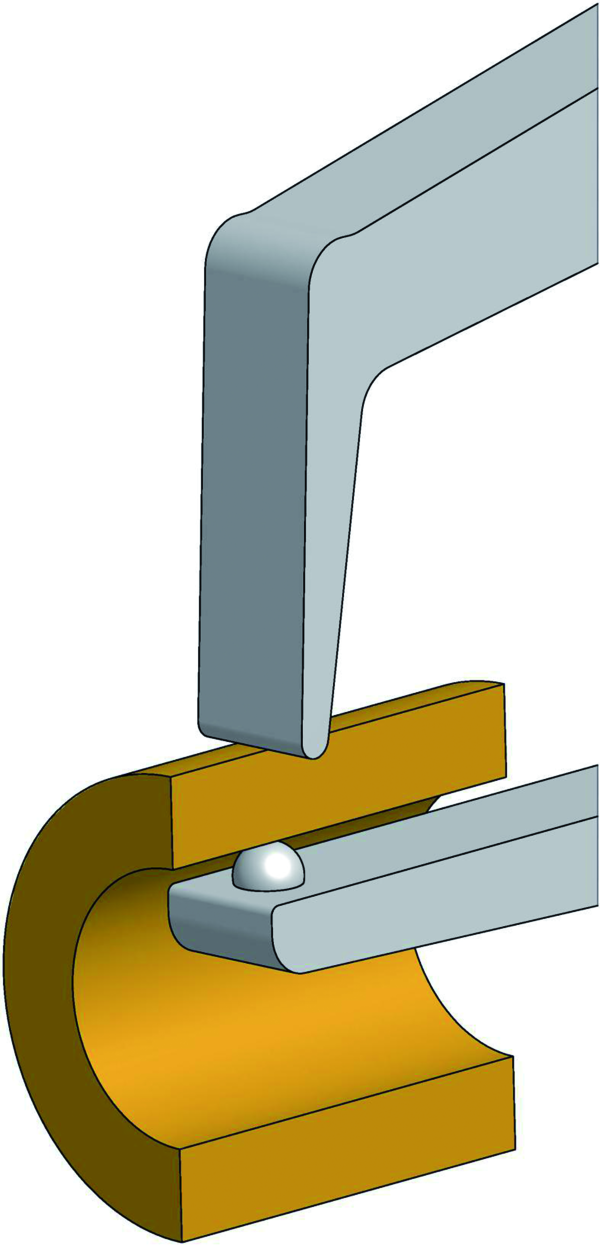

Application: Measurement of tube wall thickness
Data output
Inch/metric
Brand: Mitutoyo/Kroeplin

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

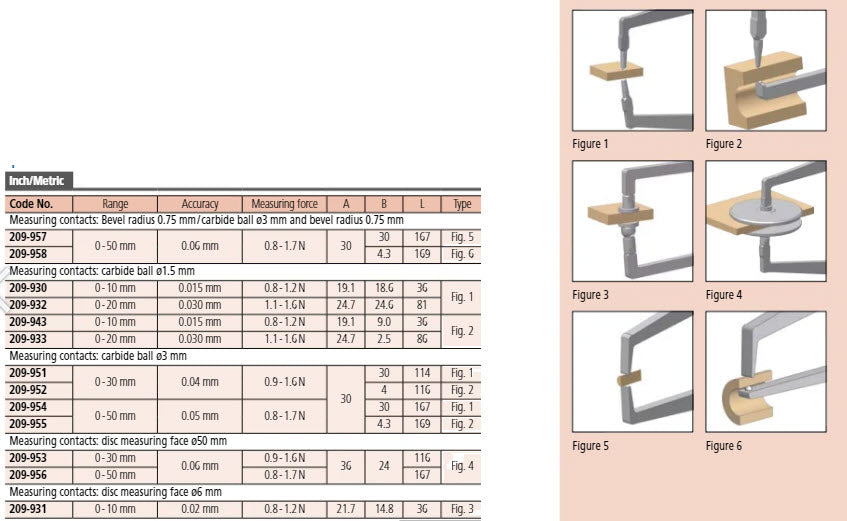

Product Information
Part Number	209-958
Measuring Range	0-50mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	[".06mm"]
Accuracy	.06mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP67"]
Measuring Force	0-8-1.7N
Type	External
Repeatability	.03mm
Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 3mm diameter/Carbide Bevel radius 0.75mm
Measurement L	169mm
Measurement B	4.3mm
Measurement A	30mm
