Mitutoyo SKU: 209-956
List price: €1,089.00 Offer price: €844.00 Excluding VAT

Optional Services

Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Round 6-Pin Type 937387
Part number: 937387  → View product
Mitutoyo Digimatic Cable, Round 6-Pin Type 965013
Part number: 965013  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable E Round 6-Pin Type 02AZD790E
Part number: 02AZD790E  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380E
Part number: 06AFM380E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 011551 Series 209 Digimatic Interface Adaptor
Part number: 011551  → View product
  • Digital Caliper Gauge enables measurements in hard-to-reach places
  • Excellent resistance against water and dust IP67 level
Digital/Analog:
Digital
Inch-Metric:
Metric/Inch
Delivered:
Including 2 batteries LR3, certificate of inspection
Range:
0 - 50 mm
Digital step:
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:
IP67
Measuring force:
0,8-1,7 N
Mass:
500 g
Power supply:
2 batteries LR03 (AAA)
ABS/INC switchable:
Yes
Auto Power OFF
after 1/5/10 min. non use:
YES
Analog bar resolution switchable:
Yes
OFFSET:
Yes
Type:

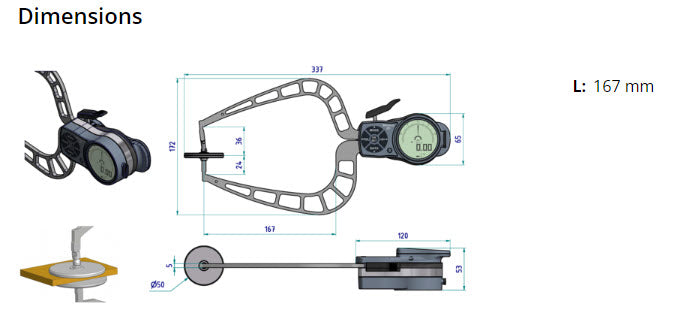

Fig. 4
Hb:
36 mm
Hf:
24 mm
mm/inch conversion:
Yes
HOLD:
Yes
SET key:
Yes
DATA key:
Yes
DATA-Logger (100 measured values):
Yes
Max. reading:
Yes
Min. reading:
Yes
Tolerance LED (green/red):
Yes
Tolerance judgement:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
