Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)

Name: Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Brand: Mitutoyo
SKU: 209-955
Price: 834.38 EUR
Availability: InStock

MitutoyoSKU: 209-955

Price:

€834.38 €1,112.50

Quantity:

Digital Caliper Gauge enables measurements in hard-to-reach places
Excellent resistance against water and dust IP67 level

Digital/Analog:	Digital
Inch-Metric:	Metric/Inch
Delivered:	Including 2 batteries LR3, certificate of inspection
Range:	0 - 50 mm
Digital step:	0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:	IP67
Measuring force:	0,8-1,7 N
Mass:	460 g
Power supply:	2 batteries LR03 (AAA)
ABS/INC switchable:	Yes
Auto Power OFF after 1/5/10 min. non use:	YES
Analog bar resolution switchable:	Yes
OFFSET:	Yes
Type:	Fig. 2
Hb:	30 mm
Hf:	4.3 mm
mm/inch conversion:	Yes
HOLD:	Yes
SET key:	Yes
DATA key:	Yes
DATA-Logger (100 measured values):	Yes
Max. reading:	Yes
Min. reading:	Yes
Tolerance LED (green/red):	Yes
Tolerance judgement:	Yes

Product Information
Part Number	209-955
Measuring Range	0-50mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	[".05mm"]
Accuracy	.05mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP67"]
Measuring Force	0-8-1.7N
Type	External
Repeatability	.03mm

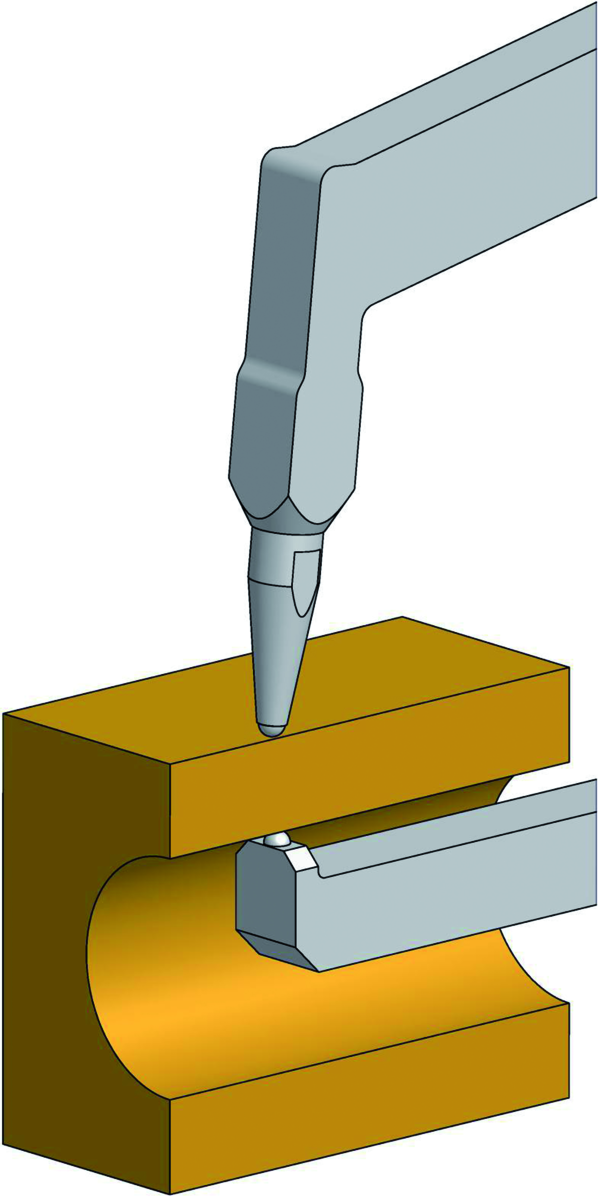

Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 3mm diameter
Measurement L	169mm
Measurement B	4.3mm
Measurement A	30mm

Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
