Mitutoyo External Dial Caliper Gauge 209-917, 0-2" Grad .001" Wall thickness ( Kroeplin Equivalent D9R50)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Dial Caliper Gauge 209-917, 0-2" Grad .001" Wall thickness ( Kroeplin Equivalent D9R50)

Name: Mitutoyo External Dial Caliper Gauge 209-917, 0-2" Grad .001" Wall thickness ( Kroeplin Equivalent D9R50)
Brand: Mitutoyo
SKU: 209-917
Price: 651.56 EUR
Availability: InStock

MitutoyoSKU: 209-917

Price:

€651.56 €868.75

Quantity:

The Mitutoyo 209-917 External Dial Caliper Gauge has the following specifications:

Range: 0-2.00″
Graduation: .001″
Accuracy: +/- .002″
Max. Measuring Depth L: 6.53″
Length Hb: 1.2″
Length Hf: .18″
Measuring Contact Type: RK/K
Size: 3mm
Mass: 400g

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

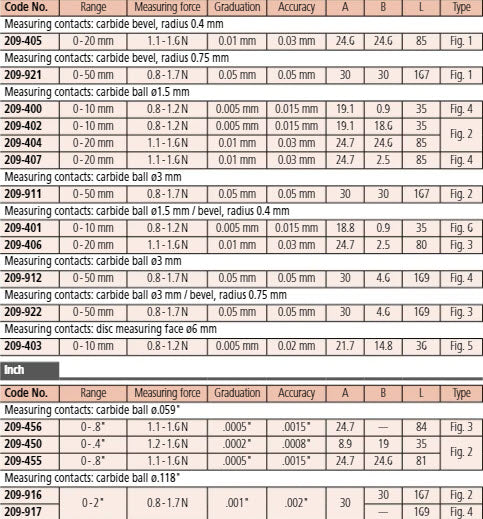

Product Information
Part Number	209-917
Measuring Range	0-2"
Accuracy	[".002\""]
Graduation	.001"
Accuracy	.002"
Unit of Measurement	Inch
Display Type	Analogue
IP Rating	["IP54"]
Measuring Force	0-8-1.7N
Type	External
Repeatability	.001"

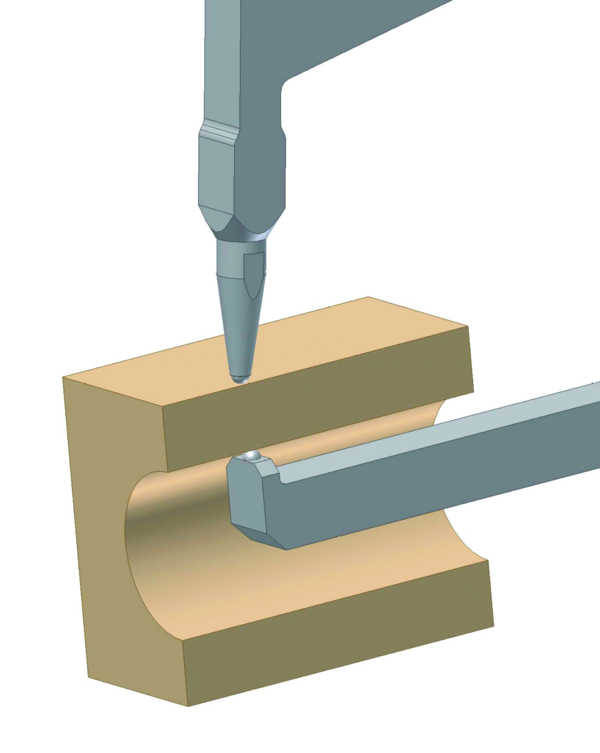

Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball diameter .118"

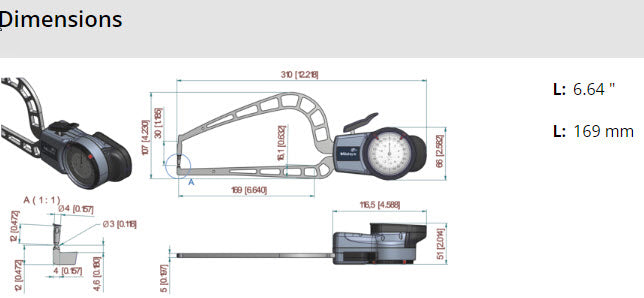

Measurement L	6.653"
Measurement B	.18"
Measurement A	1.18"
