EDA 61R-0.01-500 Precision Engineers Level Dimensions : 500 x 52 x 40mm Accuracy Inch : .0001"/10" Accuracy metric : .01mm/m Angular : 2 seconds , 59/0018

Roll over image to zoom in Click on image to zoom

EDA 61R-0.01-500 Precision Engineers Level Dimensions : 500 x 52 x 40mm Accuracy Inch : .0001"/10" Accuracy metric : .01mm/m Angular : 2 seconds , 59/0018

Name: EDA 61R-0.01-500 Precision Engineers Level Dimensions : 500 x 52 x 40mm Accuracy Inch : .0001"/10" Accuracy metric : .01mm/m Angular : 2 seconds , 59/0018
Brand: Eda
SKU: 61R-0.01-500
Price: 1313.0 EUR
Availability: InStock

EdaSKU: 61R-0.01-500

Price:

€1,313.00

Quantity:

Manufactured in France

61 R - 61 MR - 61 SL
High precision linear levels

(Patented)

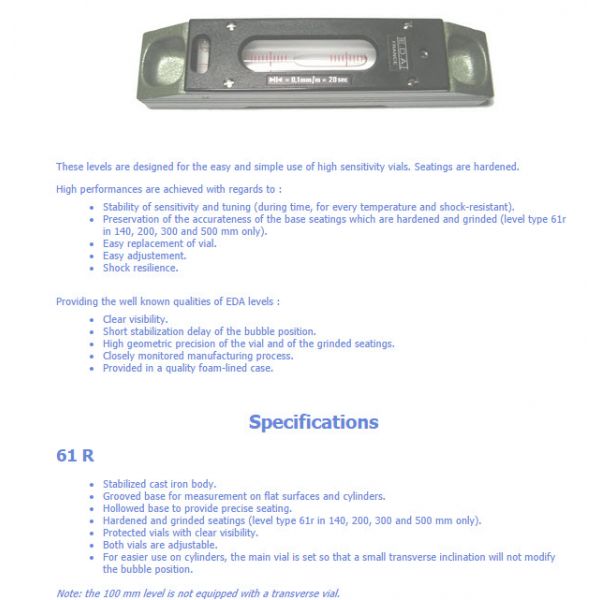

These levels are designed for the easy and simple use of high sensitivity vials. Seatings are hardened.

High performances are achieved with regards to :

Stability of sensitivity and tuning (during time, for every temperature and shock-resistant).
Preservation of the accurateness of the base seatings which are hardened and grinded (level type 61r in 140, 200, 300 and 500 mm only).
Easy replacement of vial.
Easy adjustement.
Shock resilience.

Providing the well known qualities of EDA levels :

Clear visibility.
Short stabilization delay of the bubble position.
High geometric precision of the vial and of the grinded seatings.
Closely monitored manufacturing process.
Provided in a quality foam-lined case.

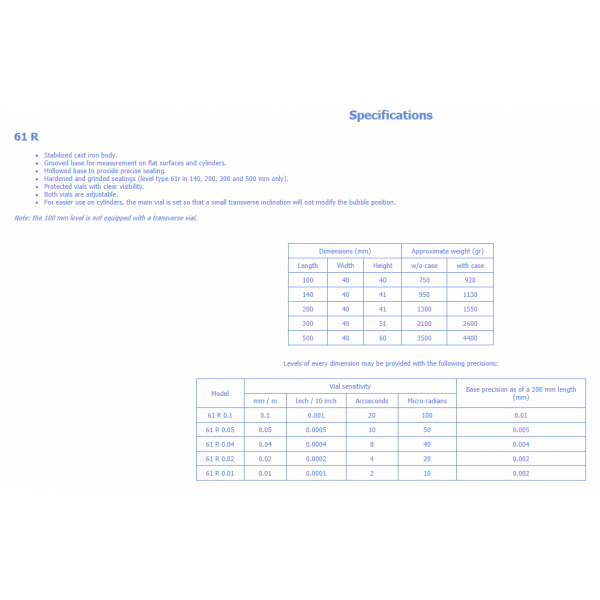

Specifications

61 R

Stabilized cast iron body.
Grooved base for measurement on flat surfaces and cylinders.
Hollowed base to provide precise seating.
Hardened and grinded seatings (level type 61r in 140, 200, 300 and 500 mm only).
Protected vials with clear visibility.
Both vials are adjustable.
For easier use on cylinders, the main vial is set so that a small transverse inclination will not modify the bubble position.
