Eda SKU: 61R-0.1-140
Price: €438.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Manufactured in France

61 R - 61 MR - 61 SL

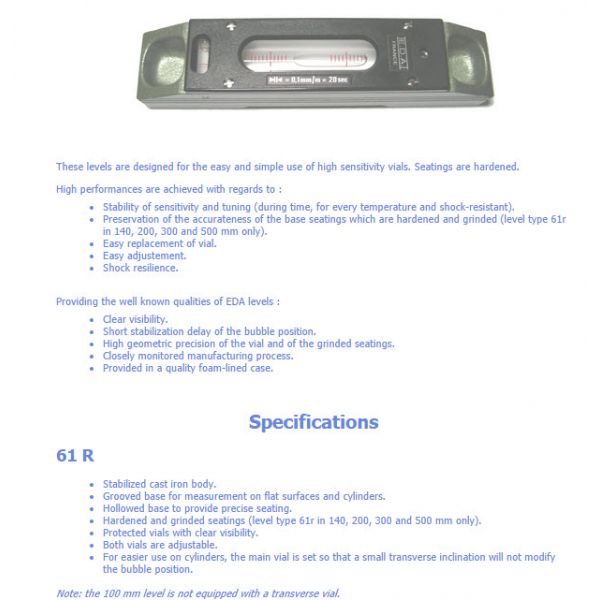

High precision linear levels

(Patented)




These levels are designed for the easy and simple use of high sensitivity vials. Seatings are hardened.

High performances are achieved with regards to :

  • Stability of sensitivity and tuning (during time, for every temperature and shock-resistant).
  • Preservation of the accurateness of the base seatings which are hardened and grinded (level type 61r in 140, 200, 300 and 500 mm only).
  • Easy replacement of vial.
  • Easy adjustement.
  • Shock resilience.

Providing the well known qualities of EDA levels :

  • Clear visibility.
  • Short stabilization delay of the bubble position.
  • High geometric precision of the vial and of the grinded seatings.
  • Closely monitored manufacturing process.
  • Provided in a quality foam-lined case.

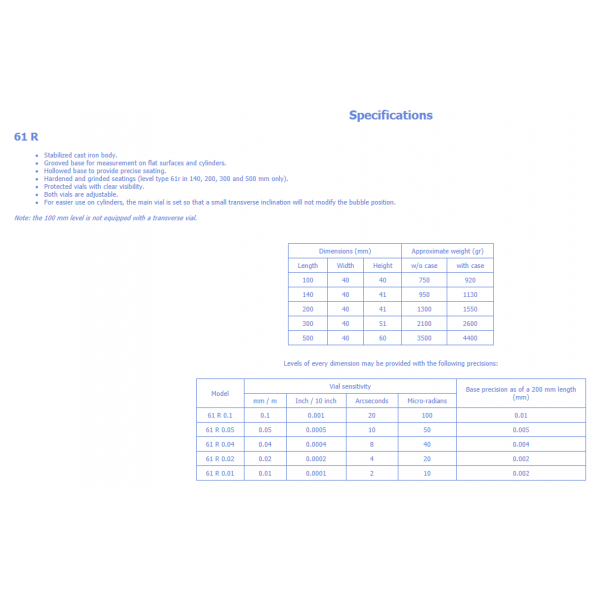

Specifications

61 R


  • Stabilized cast iron body.
  • Grooved base for measurement on flat surfaces and cylinders.
  • Hollowed base to provide precise seating.
  • Hardened and grinded seatings (level type 61r in 140, 200, 300 and 500 mm only).
  • Protected vials with clear visibility.
  • Both vials are adjustable.
  • For easier use on cylinders, the main vial is set so that a small transverse inclination will not modify the bubble position.



Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
