EC-570S Paint Film Thickness Tester MFE/NFE Manual Paint Tools Digital Coating Thickness Gauge

EC series thickness gauges can non-destructively measure the thickness of non-conductive coatings on metal surfaces, as well as non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel and cobalt, etc.), specific applications include measuring iron, stainless steel surface paint or galvanizing Layer thickness, measure the thickness of aluminum, copper surface paint or plastic film, etc.

EC-570S-P has a built-in magnetic induction and eddy current effect probe, with a measurement range of 0~2000?m and a measurement accuracy of ±(2%+1?m).

EC-570S-P is only with one button, the operation is very simple. During measurement, the user only needs to quickly attach the probe end to the surface of the object to be measured. During the process of shrinking the probe to the inside of the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer. The measurement results can be sent to the mobile APP in real time by Bluetooth. In addition, the instrument contains a large capacity memory. During the measurement process, the instrument automatically counts and records the measurement results. The recorded data can be transferred to a computer via a USB cable.

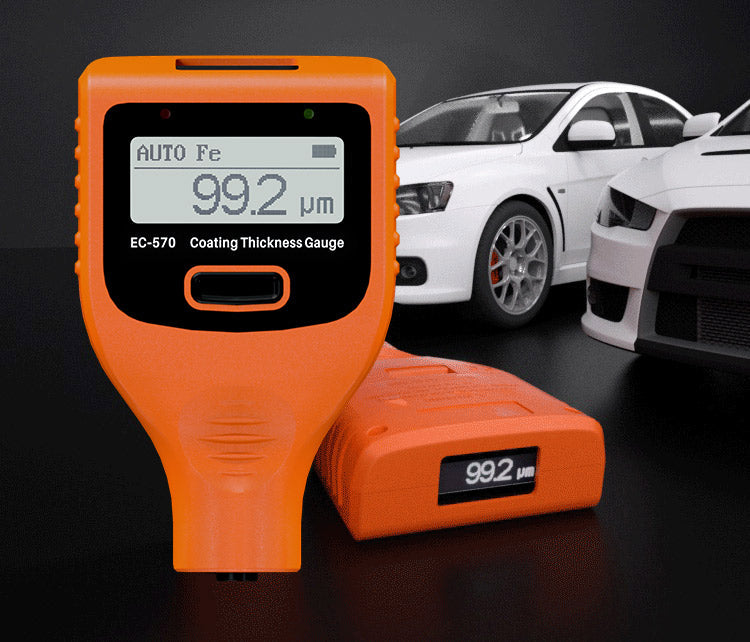

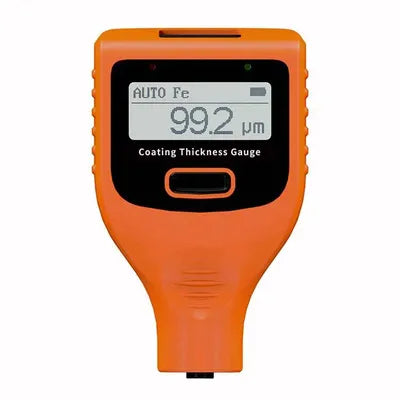

EC-570S-P is with two displays, the larger LCD screen is on the front of the instrument and the smaller OLED screen is on the top of the instrument. The dual-screen display allows users to view the measurement results from different angles.

EC-570S-P is suitable for car paint inspection: while measuring paint thickness, it can also identify iron galvanized and iron powder putty materials. The instrument has strong anti-interference ability and can work normally in a more complex electromagnetic field environment.

Specification:
