The EC-500AZ is a portable, non-destructive paint thickness gauge designed for automotive inspections. It auto-detects Fe/NFe/Zn substrates, offers ±(3%+1?m) accuracy with AVG/MAX/MIN stats and HS/nS modes (High Stability & Normal Scan). With backlit LCD, zero calibration and durable ruby probe, it’s ideal for used car buyers, detailers and body shops seeking reliable coating inspection.

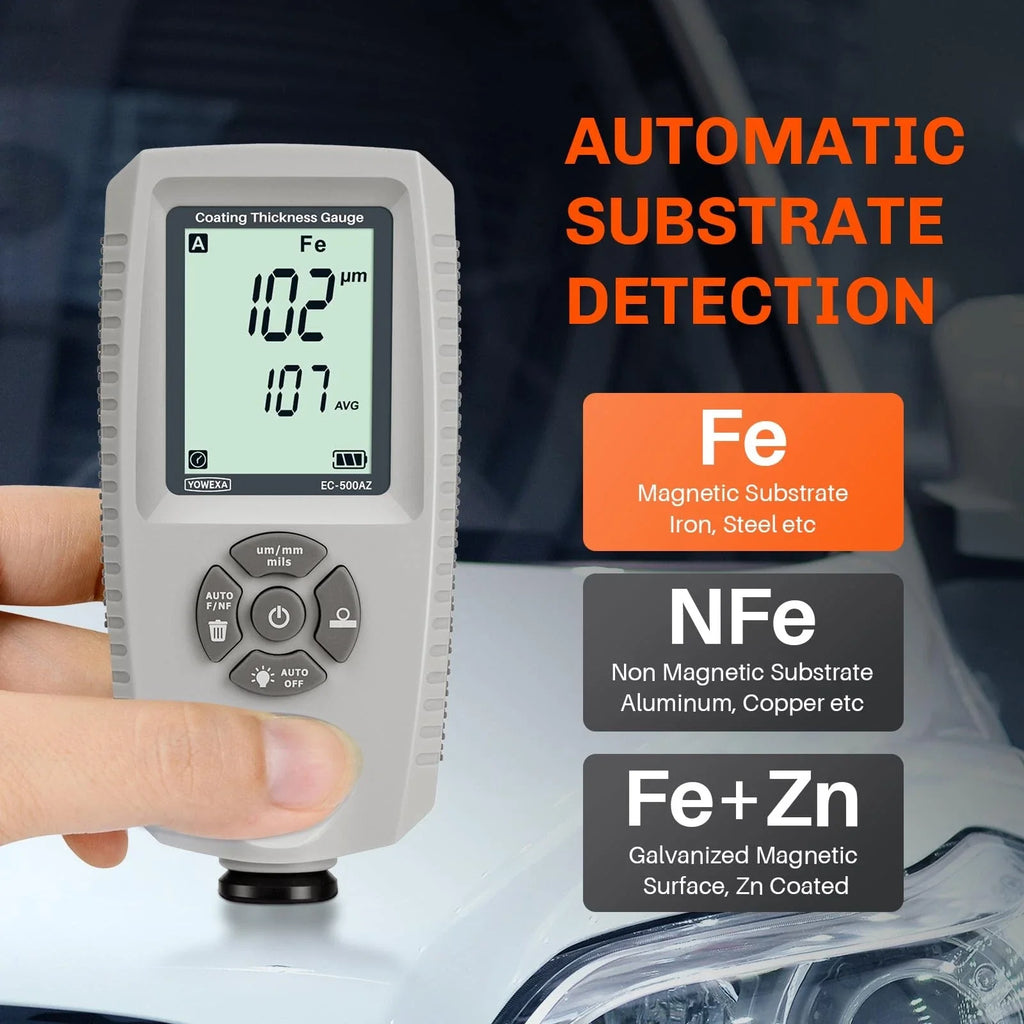

Auto Substrate Detection: Built-in magnetic and eddy-current sensor auto-recognizes Fe, NFe and Fe+Zn. The EC-500AZ digital paint thickness gauge quickly checks coatings without manual switching, ideal for car inspections and detailing.
High Accuracy: Measures 0–2000?m coatings with ±(3%+1?m) accuracy and 0.1?m resolution (0–100?m). Helps identify repainted areas, body filler or previous repairs during car appraisal or quality checks.
Specifications
| Measuring Principle | Fe: Magnetic induction; NFe: Eddy currents |
| Measuring Range | 0–1500 ?m |
| Accuracy | ±(3% + 1 ?m) |
| Resolution | 0.1 ?m (0–99.9 ?m), 1 ?m (?100 ?m) |
| Unit | ?m, mm, mils |
| Operation Environment | Temperature: -10–50°C |
| Storage Environment | Temperature: -10–60°C |
| Power Supply | Two 1.5V AAA batteries |
| Standards / Certificates | CE, ROHS, ISO 2178, 2360, GB / T 4956-2003, 4957-2003 |
| Size / Weight / Case Material | 116 mm x 53 mm x 24 mm, 80 g (incl. probe) / ABS |
