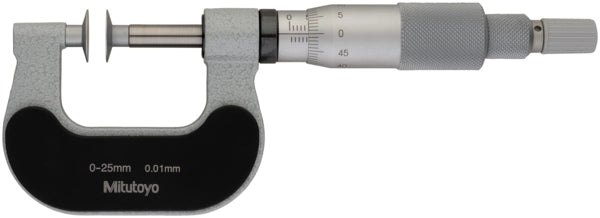

Mitutoyo Disc Micrometer, Non-Rotating Spindle, 0-1", Full Faced, D=14,3mm 169-103-10

Mitutoyo SKU: 169-101-10
List price: €296.00 Offer price: €230.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

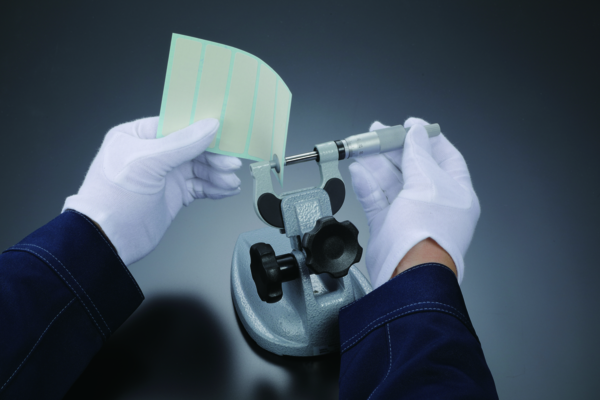

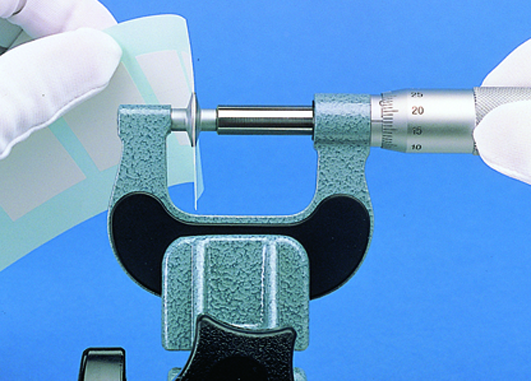

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:
  • It features a non-rotating spindle and disc-shaped measuring surfaces.
  • Measuring the root tangent length of spur and helical gears
  • Measurable range of gear pitch: 0,5-6 module
  • It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

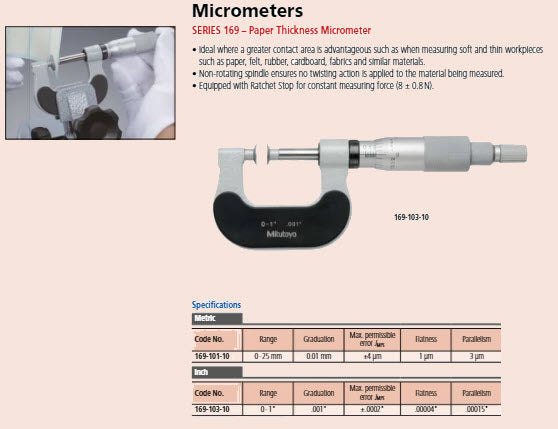

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 1"
Max.
Permissible Error		 .00016"
Flatness:
.00004"
Parallelism:
.00012"
Graduation:
0.001"
Measuring face:
Hardened steel, micro-lap finish

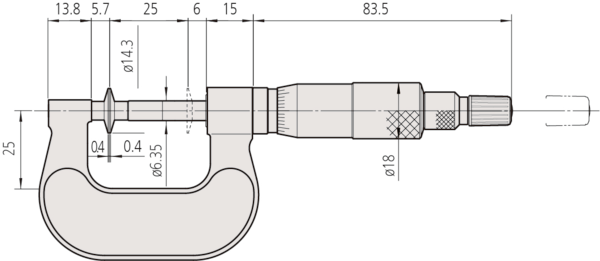

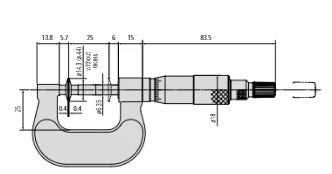

Measuring spindle:
ø6,35 mm, non-rotating, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
230 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
