Mitutoyo Disc Micrometer, Hardened Steel Disks 50-75mm, Disk=20mm 123-103

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 50-75mm, Disk=20mm 123-103

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 50-75mm, Disk=20mm 123-103
Brand: Mitutoyo
SKU: 123-103
Price: 264.63 EUR
Availability: InStock

MitutoyoSKU: 123-103

Price:

€264.63 €362.50

Quantity:

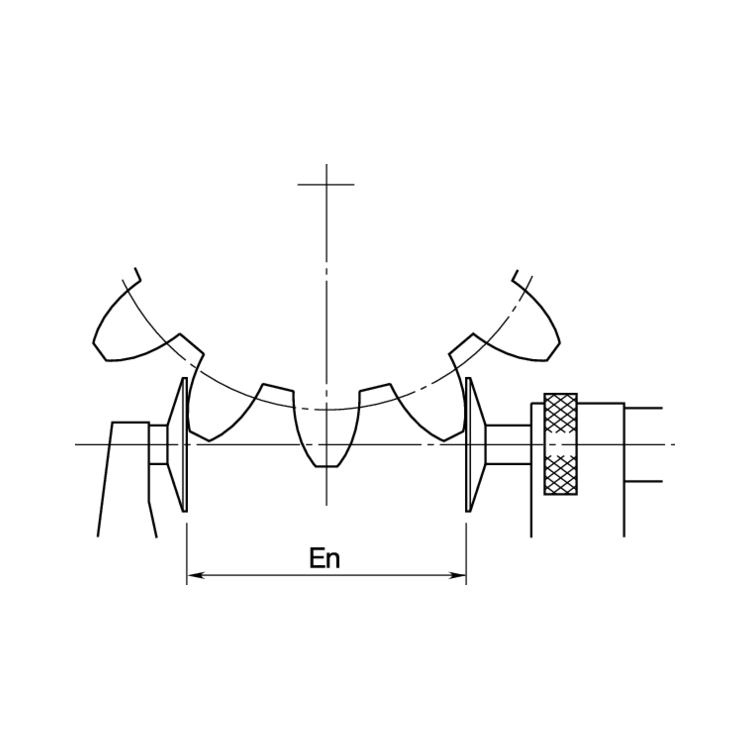

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

Product Information

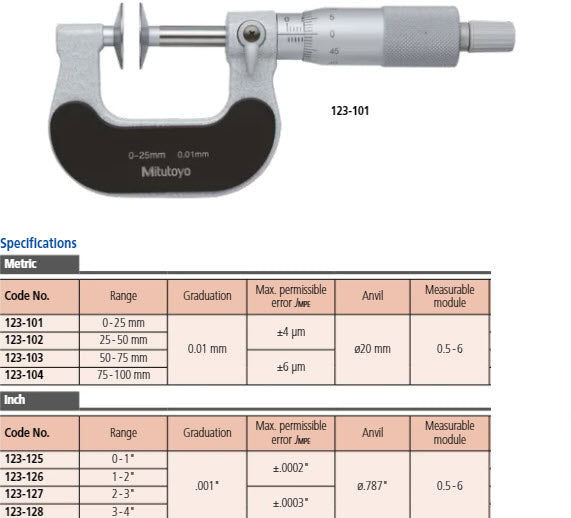

Part Number	123-103
Measuring Range	50-75mm
Accuracy	["+/-.006mm"]
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Disc
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop

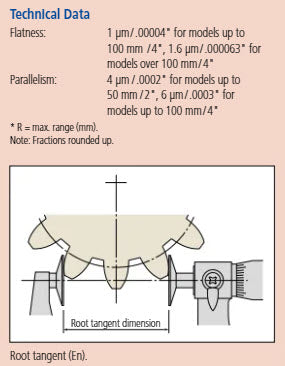

Flatness	1µm/.00004"
Parallelism	.004mm/.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	50 - 75 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±6 µm
Flatness:	1 µm
Parallelism:	6 µm
Measuring face:	Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Measurable module:	0.5 - 6 mm
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	300 g
