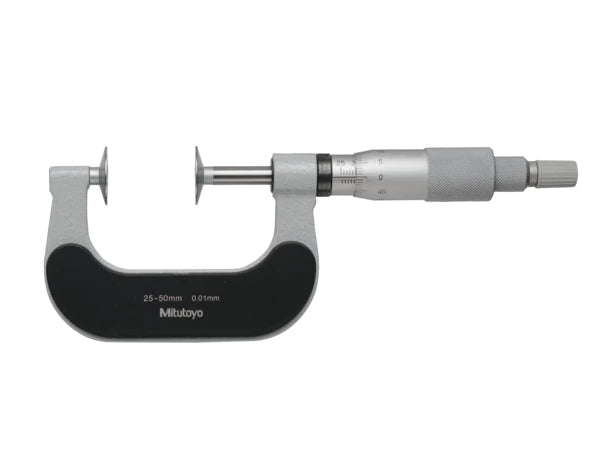

Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 169-202-10 Non Rotating Spindle

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 169-202-10 Non Rotating Spindle

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 169-202-10 Non Rotating Spindle
Brand: Mitutoyo
SKU: 169-202-10
Price: 263.71 EUR
Availability: InStock

MitutoyoSKU: 169-202-10

Price:

€263.71 €361.25

Quantity:

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module

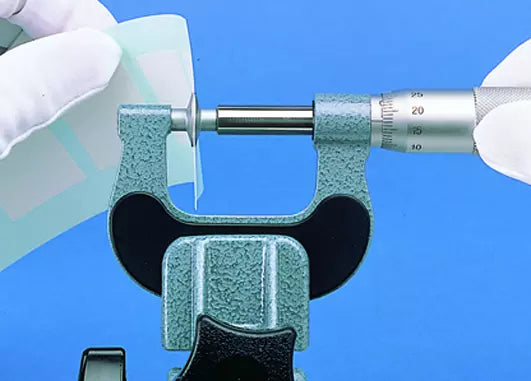

It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

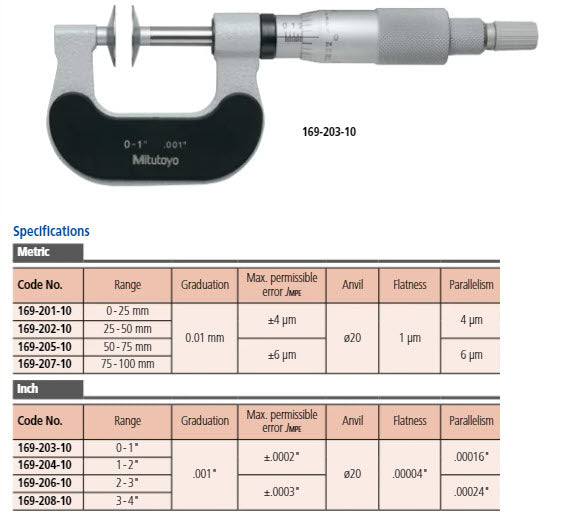

Product Information
Part Number	169-202-10
Measuring Range	25-50mm
Accuracy	["+/-.004mm"]
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop
Flatness	1µm/.00004"
Parallelism	.004mm/.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	1 µm
Parallelism:	4 µm
Graduation:	0.01mm
Measuring face:	Hardened steel, micro-lap finish
Measuring spindle:	ø6,35 mm, non-rotating, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Mass:	280 g
