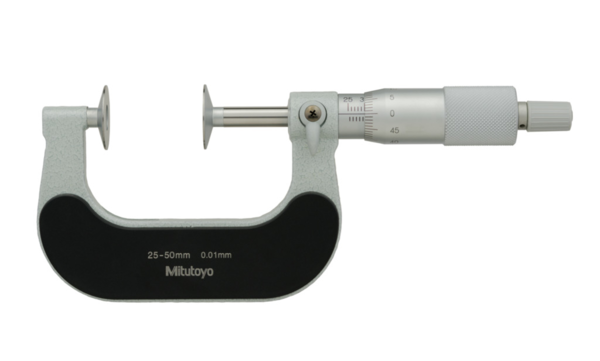

Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 123-102

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 123-102

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 25-50mm, Disk=20mm 123-102
Brand: Mitutoyo
SKU: 123-102
Price: 241.81 EUR
Availability: InStock

MitutoyoSKU: 123-102

Price:

€241.81 €331.25

Quantity:

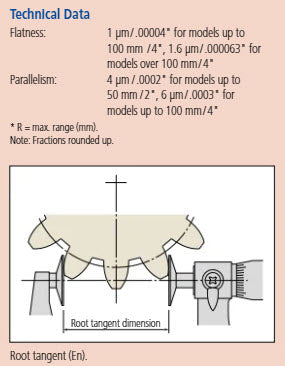

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

Product Information

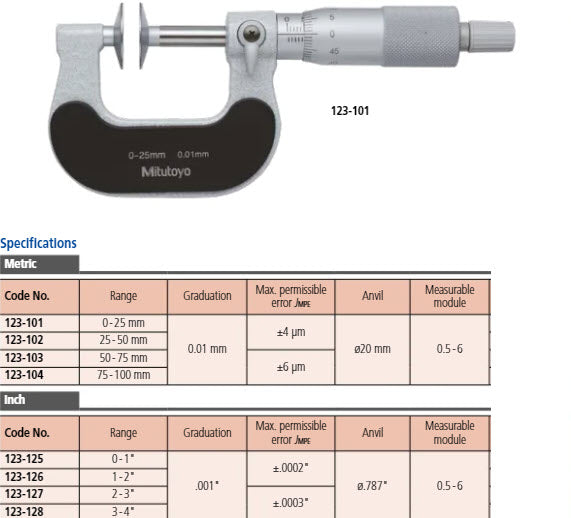

Part Number	123-102
Measuring Range	25-50mm
Accuracy	["+/-.004mm"]
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop
Flatness	1µm/.00004"
Parallelism	.004mm/.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	1 µm
Parallelism:	4 µm
Measuring face:	Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil

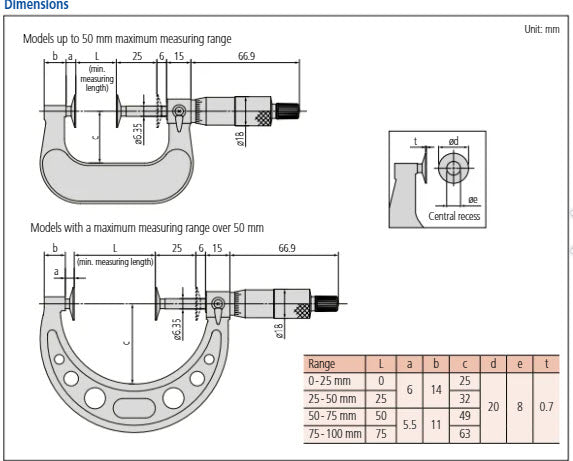

Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Measurable module:	0.5 - 6 mm
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	250 g
