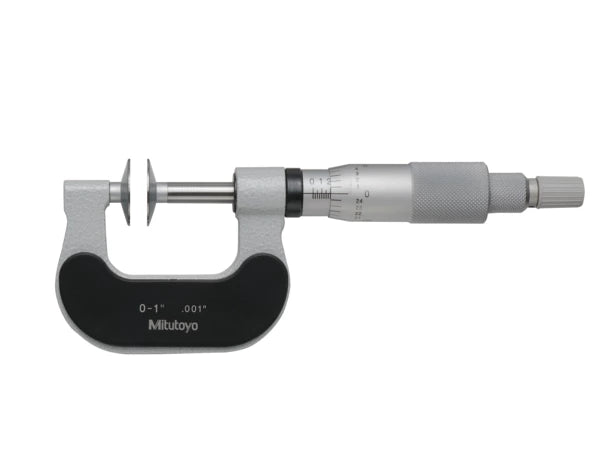

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk .8" 169-203-10 Non Rotating Spindle

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk .8" 169-203-10 Non Rotating Spindle

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk .8" 169-203-10 Non Rotating Spindle
Brand: Mitutoyo
SKU: 169-203-10
Price: 231.0 EUR
Availability: InStock

MitutoyoSKU: 169-203-10

Price:

€231.00 €307.23

Quantity:

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module

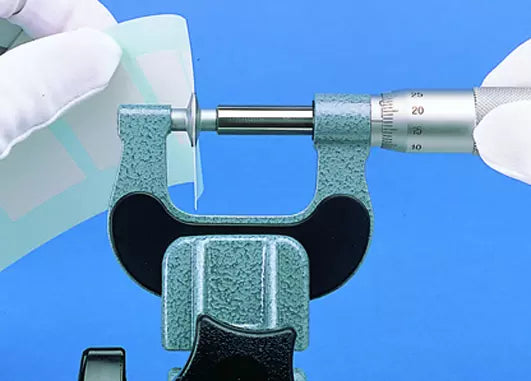

It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

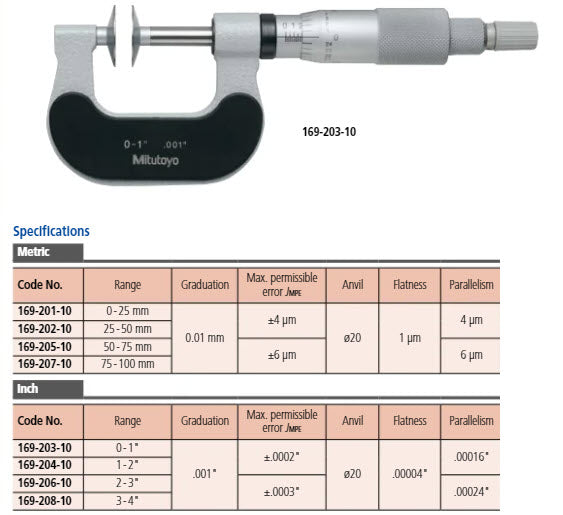

Product Information
Part Number	169-203-10
Measuring Range	0-1"
Accuracy	["±.00015\""]
Graduation	.001"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop
Flatness	.00004"
Parallelism	.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Max. Permissible Error J MPE:	±0,0002"
Flatness:	0,00004"
Parallelism:	0,0002"
Graduation:	0,001"
Measuring face:	Hardened steel, micro-lap finish
Measuring spindle:	ø6,35 mm, non-rotating, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Mass:	230 g
