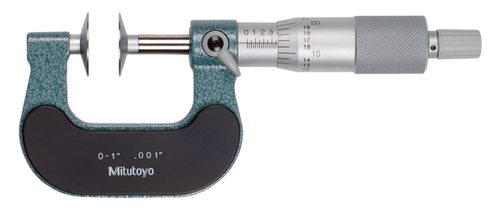

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk=20mm 123-125

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk=20mm 123-125

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk=20mm 123-125
Brand: Mitutoyo
SKU: 123-125
Price: 213.53 EUR
Availability: InStock

MitutoyoSKU: 123-125

Price:

€213.53 €292.50

Quantity:

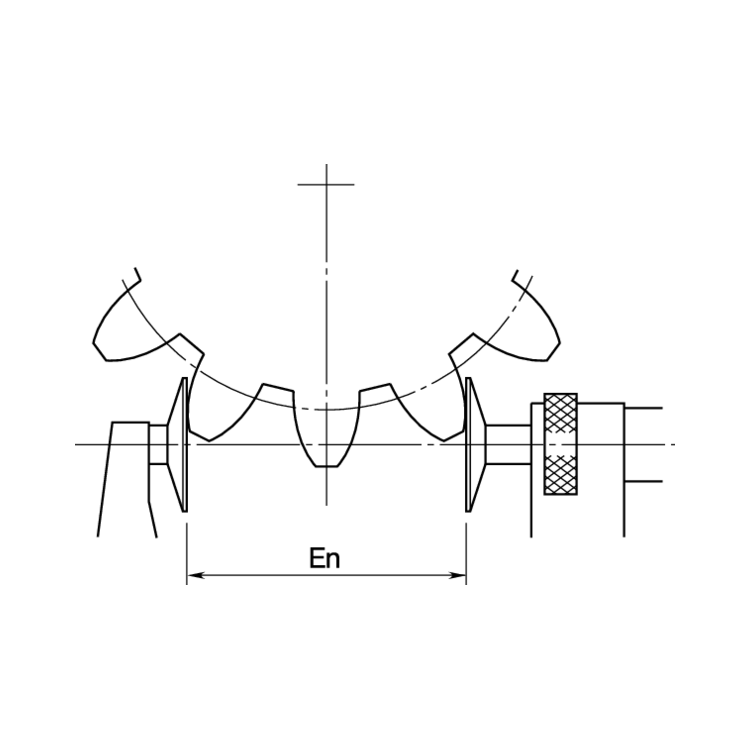

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.

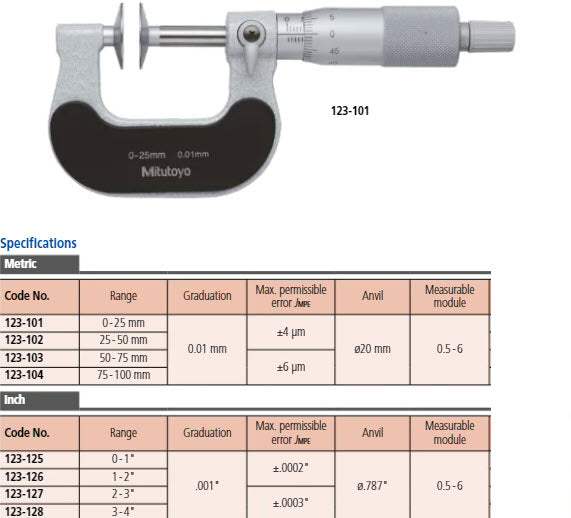

Product Information
Part Number	123-125
Measuring Range	0-1"
Accuracy	["+/-.0002\""]
Graduation	.001"
Unit of Measurement	Inch
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop

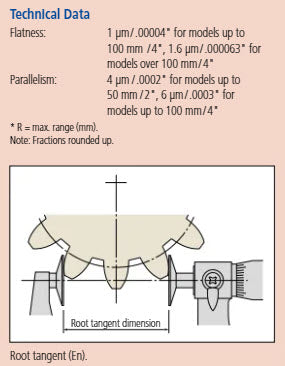

Flatness	.00004"
Parallelism	.0002"
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,0002"
Flatness:	0,00004"
Parallelism:	0,00016"
Measuring face:	Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Measurable module:	0.5 - 6 mm
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	200 g
