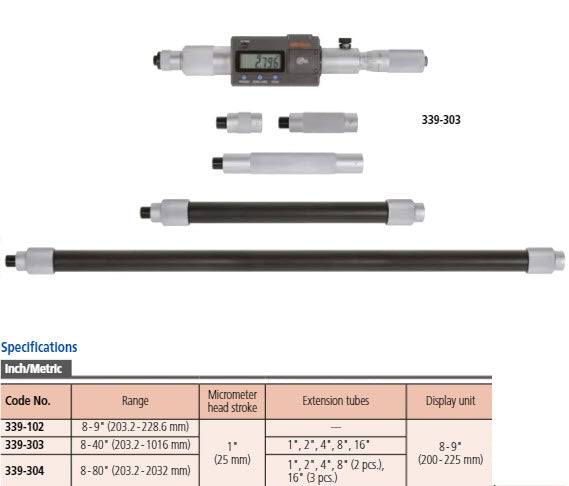

Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304

Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-304

Mitutoyo SKU: 339-304
List price: €2,212.00 Offer price: €1,714.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE Connection Cable B with Data Button IP Micrometer Type 02AZD790B
Part number: 02AZD790B  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable B, Footswitch with Data Button IP Micrometer Type 02AZE140B
Part number: 02AZE140B  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
A Mitutoyo digital inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
8 - 80 "
Measuring span:
1"
Digital step:
0,0001"/0,001 mm
Limit of error:
±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Display:
LCD, character height 7.5 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Carbide
Extension:
ø17 mm
Extension rods:

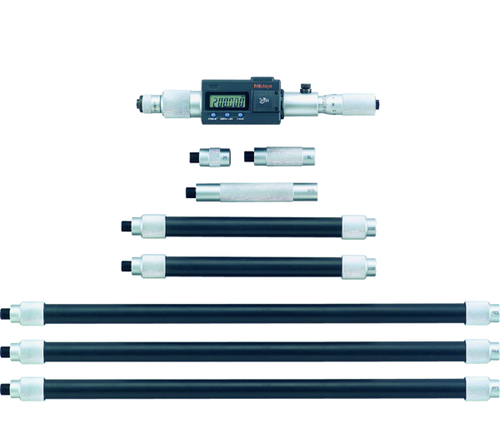

8 (1, 2, 4, 8 (2 pcs.), 16" (3 pcs.))
Power supply:
1 battery SR-44
Delivered:
Including box, key, 1 battery, extensions, micrometer head
DATA/HOLD:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
2 x PRESET:
Yes
Delivered:
Including box, spanner, 1 SR44 battery, 8 extension rods, micrometer head (main unit) 139-103
Spindle feed error:
0.00015 inch
Data output:
Yes
Mass:
1800 g
