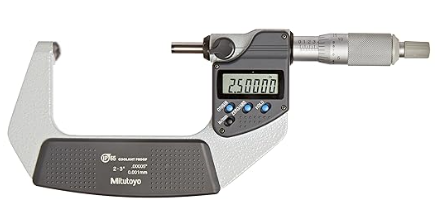

Mitutoyo Digital Tube Micrometer, Spherical Anvil Inch/Metric,50-75mm/ 2-3", IP65 395-353-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Tube Micrometer, Spherical Anvil Inch/Metric,50-75mm/ 2-3", IP65 395-353-30

Name: Mitutoyo Digital Tube Micrometer, Spherical Anvil Inch/Metric,50-75mm/ 2-3", IP65 395-353-30
Brand: Mitutoyo
SKU: 395-353-30
Price: 545.0 EUR
Availability: InStock

MitutoyoSKU: 395-353-30

Price:

€545.00 €727.00

Quantity:

Mitutoyo; Digital Tube Micrometer

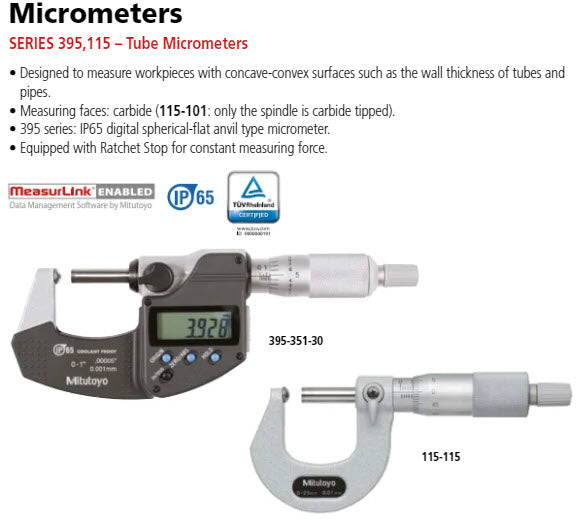

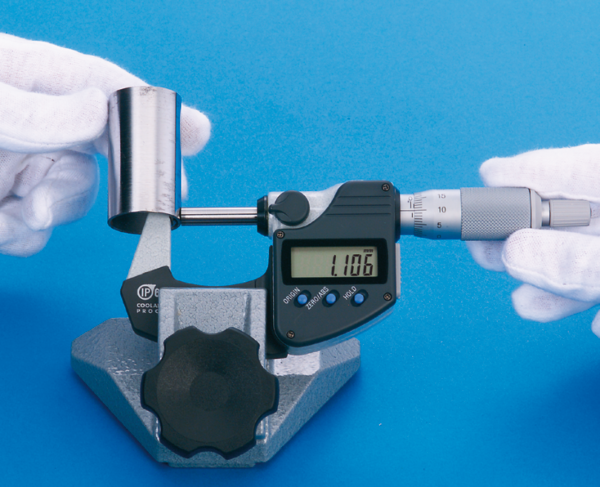

This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

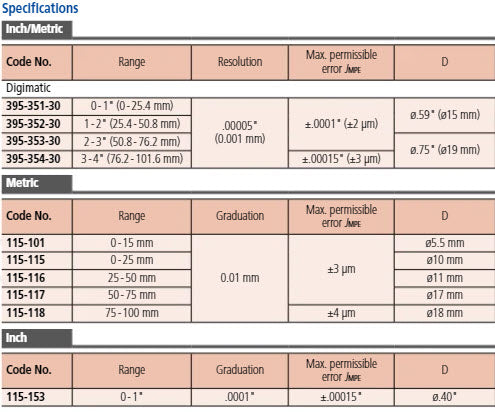

Product Information
Part Number	395-353-30
Measuring Range	50-75mm/2-3"
Resolution	.001mm/.00005"
Accuracy	["±.002mm/.0001\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	8+/-0.8N
Type	Tube
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Flatness	.0006mm/.000024"
Anvils & Spindle Design	Spherical Anvil & Flat Spindle Type B (S-F)
Calibration Code	CAL9 B1

Digital/Analog:	Digital

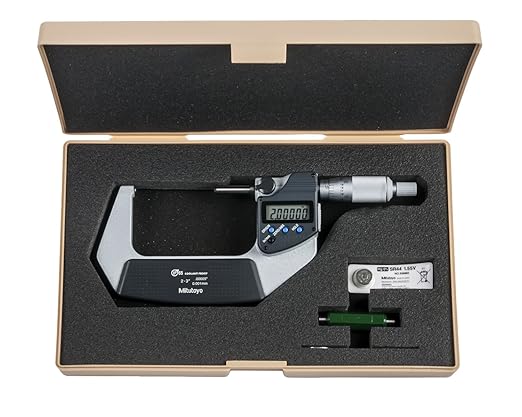

Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	2 - 3 "/50-75mm
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"/.0025mm
Flatness:	0,000012"/.003mm
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type A, spherical anvil SR=4 mm/flat spindle
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery
