Mitutoyo SKU: 395-352-30
List price: €639.00 Offer price: €495.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

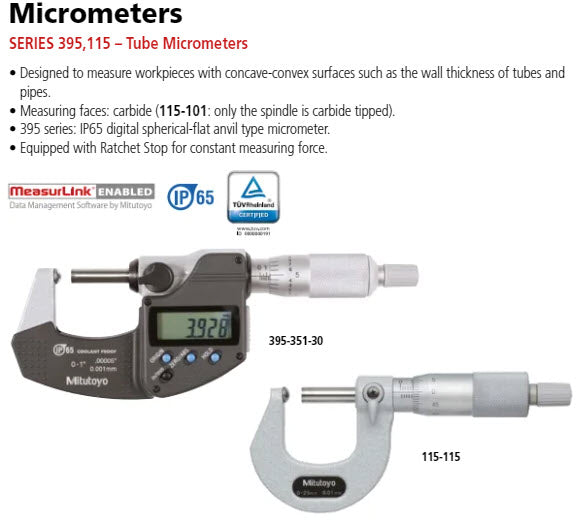

Mitutoyo; Digital Tube Micrometer

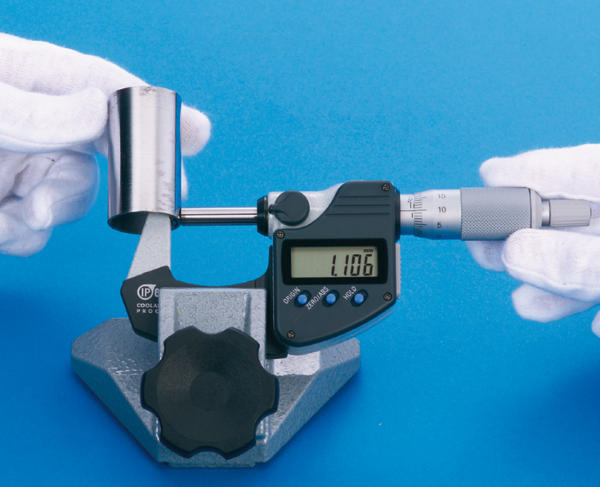

This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.

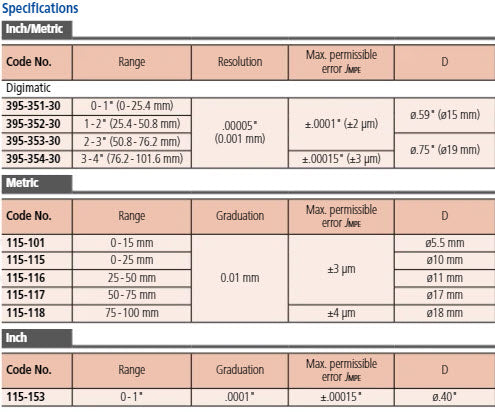

Specification
Digital/Analog:
Digital
Delivered:

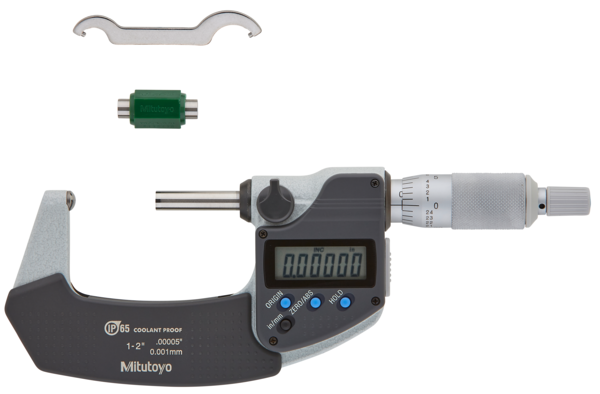

Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
1 - 2 "/25-50mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0001"/.002mm
Flatness:
0,000012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type A, spherical anvil SR=4 mm/flat spindle
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery
