Mitutoyo SKU: 395-363-30
List price: €656.00 Offer price: €509.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Mitutoyo; Digital Tube Micrometer

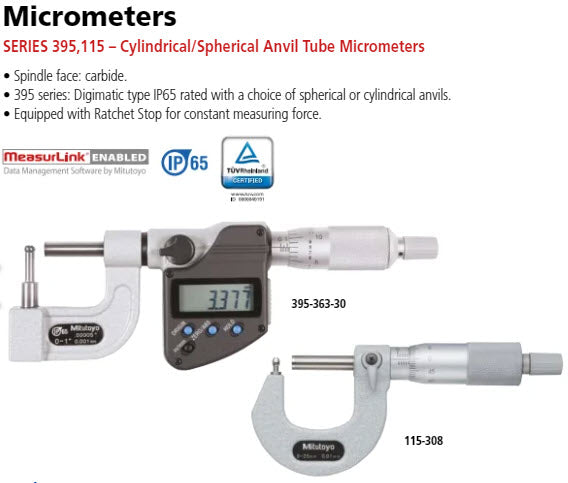

This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.

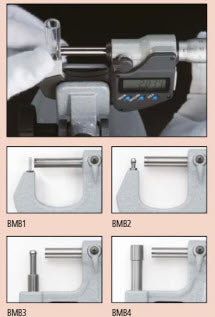

Spherical and cylindrical anvil type.

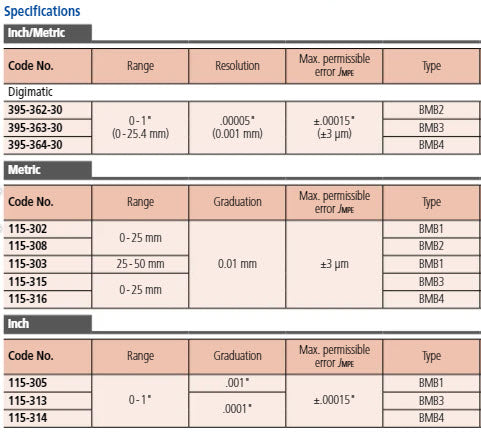

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 1 "
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00015"
Flatness:
0,000012"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish

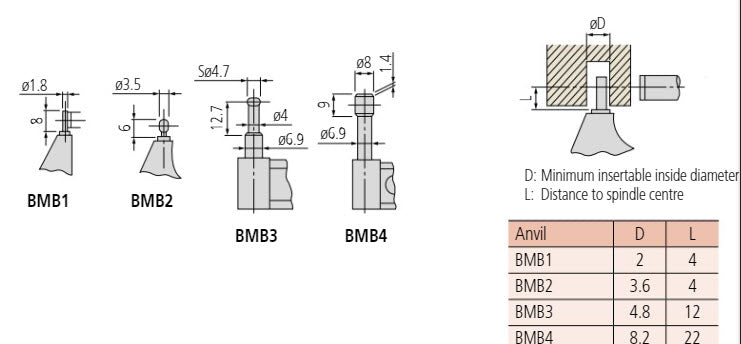

Anvil / Spindle:
Type C, spherical pin D=4.7 mm/flat spindle
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery
