Mitutoyo SKU: 547-401A
List price: €895.00 Offer price: €694.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Connection Unit ID-C Indicator 12,7mm/0,5” Type, U-WAVE fit, U-WAVE fit Bluetooth 02AZF700
Part number: 02AZF700  → View product
U-WAVE Connection Cable SF Footswitch, for Digimatic S1 Interface 02AZG021
Part number: 02AZG021  → View product
Mitutoyo 06AGL011 Digimatic Cable, Straight,1M S1 Interface
Part number: 06AGL011  → View product
Mitutoyo 06AGL021 Digimatic Cable, Straight,2M S1 Interface
Part number: 06AGL021  → View product
Mitutoyo 06AGQ001F USB Input Tool Direct, Indicator Type 2m Cable, Digimatic/Digimatic 2/Digimatic S1 Interface
Part number: 06AGQ001F  → View product
Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo CR2032 Battery 05SAA217
Part number: 05SAA217  → View productCurrently unavailable

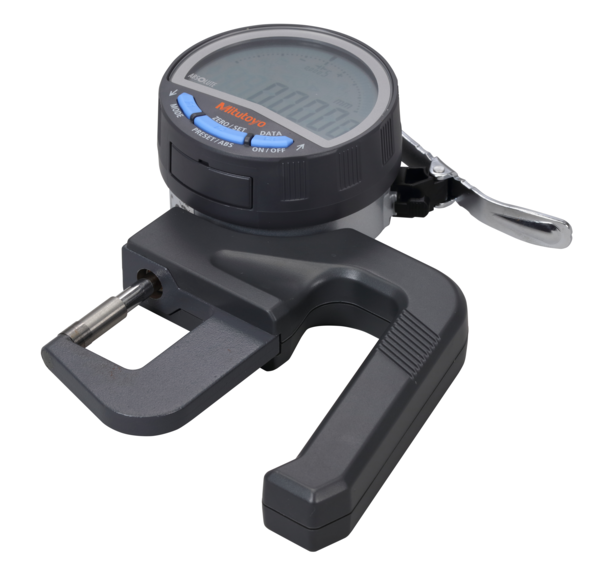

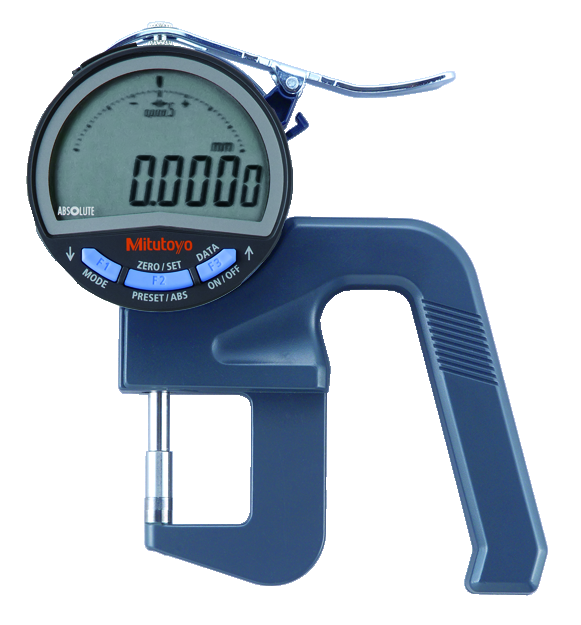

This ABSOLUTE Digimatic Thickness Gauge with 1 µm digital step enables you to measure film, paper, etc., with flat contact points.
  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

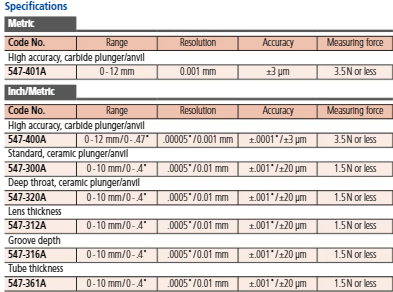

Specification
Digital/Analog:
Digital
Inch-Metric:
Metric
Functions:
With Indicator ID-C No. 543.0-700.0BS
Delivered:
In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:
0 - 12 mm
Type:
D= 6.3 mm carbide tipped
Digital step:
0.0005 mm/ 0.001 mm/ 0.1 mm
Accuracy:
±3 µm
Parallelism:
3 µm
Protection:
IP42
Indicator No.:
543-700BS
Max. measuring depth:
21 mm
Measuring force:
≤ 3,5 N
Display:
LCD, character height 11 mm
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:
1 battery CR2032 (3V)
Battery life:
Continuous use: approx. 2700h
Remarks:
Electrostatic capacitance type absolute linear encoder
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Digimatic S1 Bidirectional interface:
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Analog bar resolution switchable:
Yes
Customizing keys:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
Yes
Mass:
275 g
