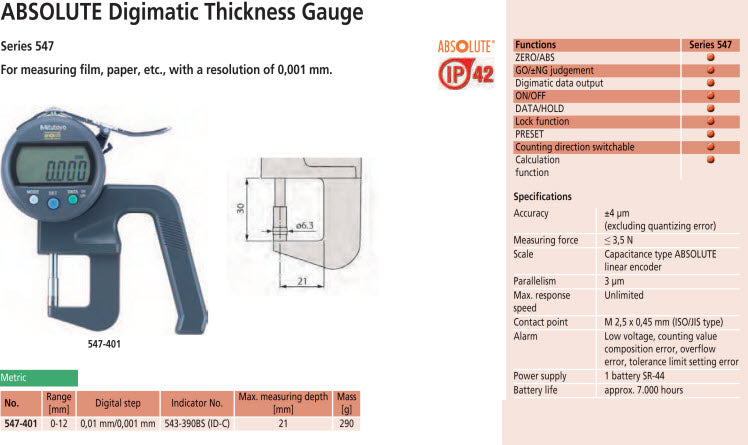

Specifications:
- Range: 0-12 mm
- Digital Step: 0.01 mm/0.001 mm
- Maximum Measuring Depth: 21 mm
- Accuracy: ±3 µm
- Measuring Force: ≤ 3.5 N
- Scale: Capacitance type Absolute linear encoder

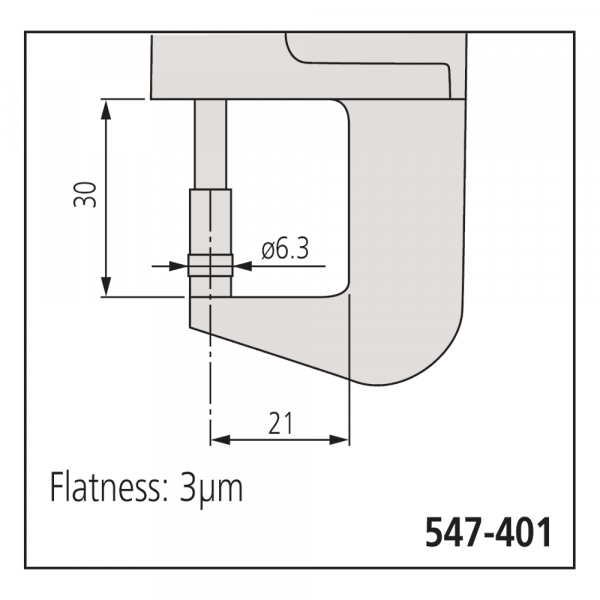

- Parallelism: 3
- Maximum Response Speed: Unlimited
- Contact Point: M 2.5 x 0.45 mm
- Battery Type: SR-44
- Battery Life: Approximately 7000 hours
- Zero/ABS: Yes
- GO/±NG Judgement: Yes
- Digimatic Data Output: Yes
- Lock Function: Yes
- Counting Direction Switchable: Yes
- Calculation Function: Yes
- Weight: 0.290 kg
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
