Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401

Roll over image to zoom in Click on image to zoom

Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401

Name: Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401
Brand: Mitutoyo
SKU: 547-401
Price: 540.94 EUR
Availability: InStock

MitutoyoSKU: 547-401

Price:

€540.94 €731.00

Quantity:

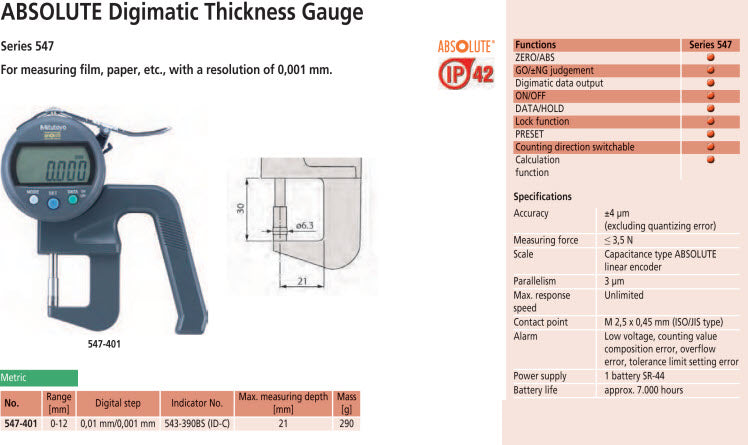

Specifications:

Range: 0-12 mm
Digital Step: 0.01 mm/0.001 mm

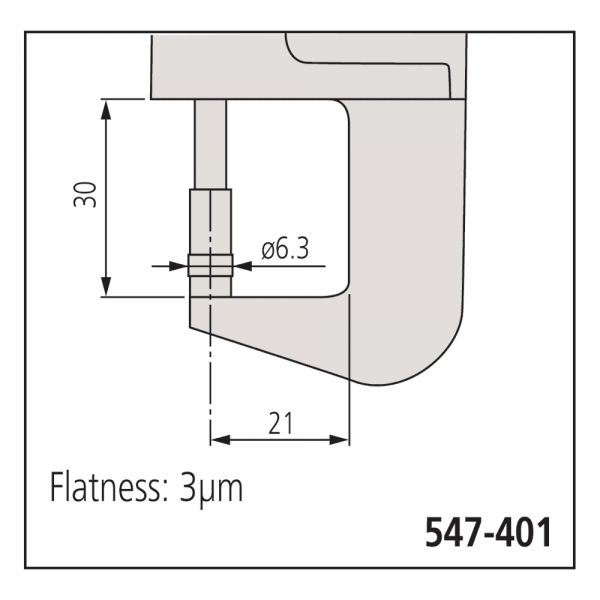

Maximum Measuring Depth: 21 mm
Accuracy: ±3 µm
Measuring Force: ≤ 3.5 N
Scale: Capacitance type Absolute linear encoder
Parallelism: 3
Maximum Response Speed: Unlimited
Contact Point: M 2.5 x 0.45 mm
Battery Type: SR-44
Battery Life: Approximately 7000 hours
Zero/ABS: Yes
GO/±NG Judgement: Yes
Digimatic Data Output: Yes
Lock Function: Yes
Counting Direction Switchable: Yes
Calculation Function: Yes
Weight: 0.290 kg

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	547-401
Measuring Range	0-12mm
Resolution	.001mm
Accuracy	.003mm
Unit of Measurement	Metric
Display Type	Digital
Data Output	Yes
Measuring Force	≤3.5N
Anvils	6.3mm steel flat anvils
