Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316A

Roll over image to zoom in Click on image to zoom

Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316A

Name: Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316A
Brand: Mitutoyo
SKU: 547-316A
Price: 432.53 EUR
Availability: InStock

MitutoyoSKU: 547-316A

Price:

€432.53 €592.50

Quantity:

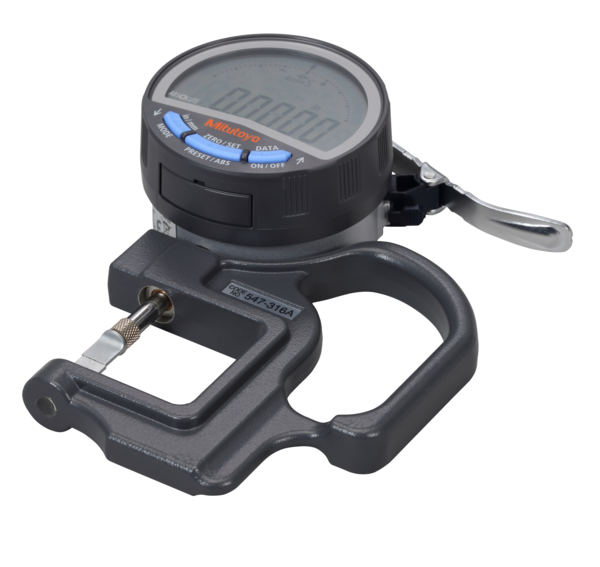

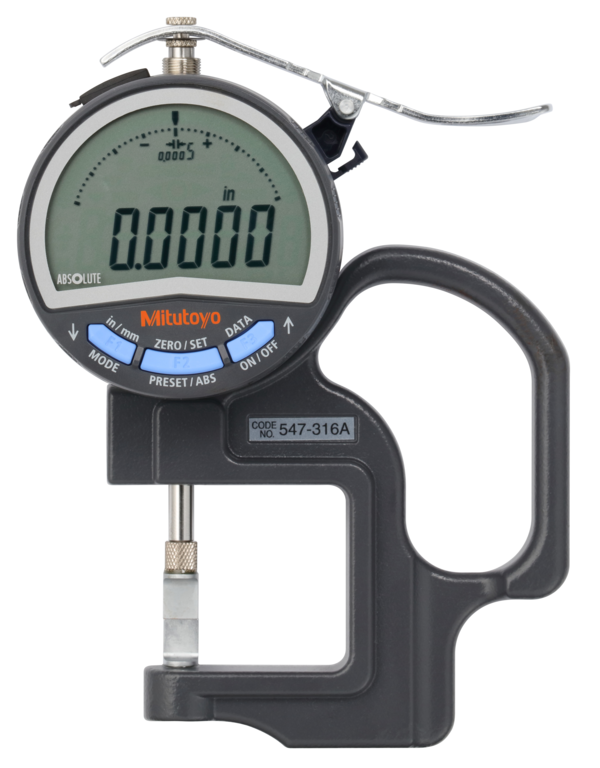

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

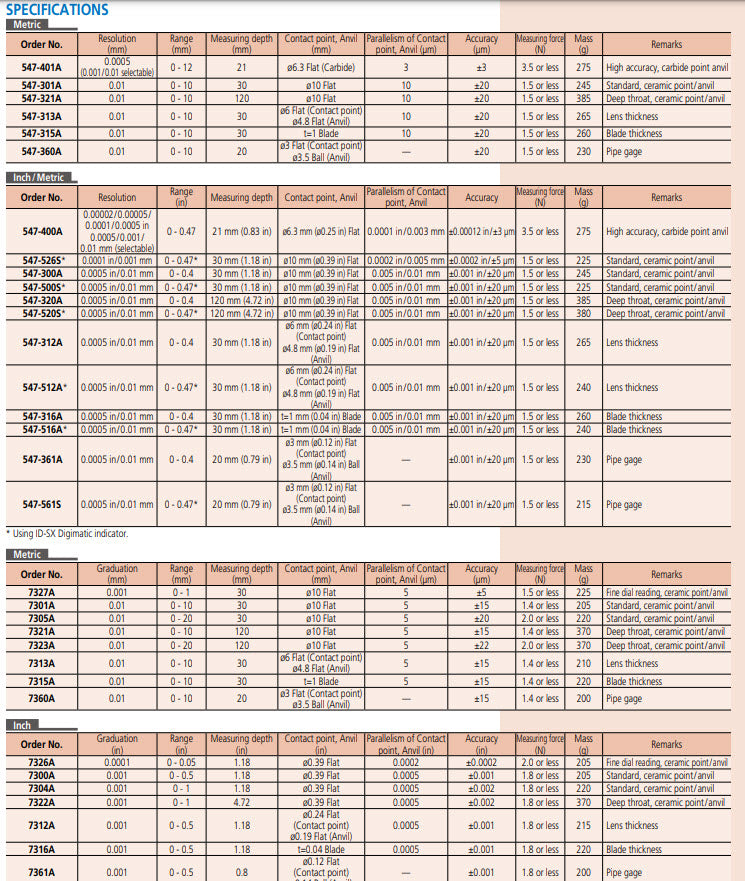

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Functions:	With indicator ID-C No. 543.0-712.0BS
Delivered:	In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:	0 - 0,4 "
Type:	Blade steel contact point
Digital step:	0,0005"/0,01 mm
Accuracy:	±20 µm
Parallelism:	0,0005"/ 0,01 mm
Protection:	IP42
Indicator No.:	543-712-10BS

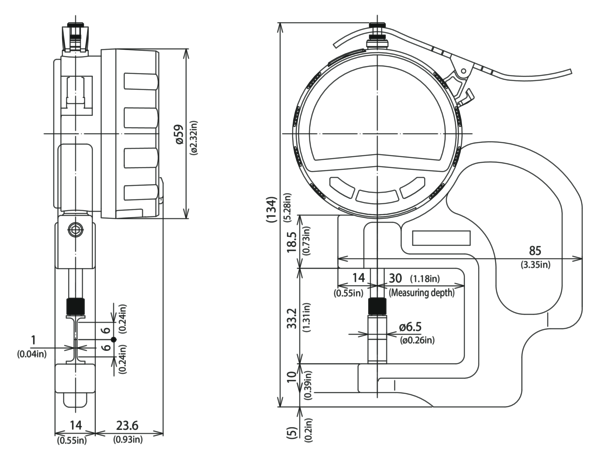

Max. measuring depth:	30 mm
Measuring force:	≤ 1.5 N
Display:	LCD, character height 11 mm
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:	1 battery CR2032 (3V)
Battery life:	Continuous use: approx. 2700h
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Calculation function (with formula):	Yes
Counting direction switchable:	Yes
Digimatic S1 Bidirectional interface:	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Analog bar resolution switchable:	Yes
Customizing keys:	Yes
Inch/Metric switchable:	Yes
Calibration warning function:	Yes
Digital step switchable:	No
Digital Scale:	Electrostatic capacitance type absolute linear encoder
Mass:	260 g

Product Information
Part Number	547-316A
Measuring Range	0-0.4"
Resolution	.01 mm/.0005"
Accuracy	["±20µm/.001\""]
Accuracy	+/-.020mm/.001"
Display Type	Digital
Data Output	Yes
IP Rating	["IP42"]
Measuring Force	≤1.5N
Anvils	Blade 1mm x 6.6mm
