Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30
Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30
Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30
Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30
Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30

Mitutoyo Digital Spline Micrometer IP65 0-25mm, 2mm Measuring Face 331-261-30

Mitutoyo SKU: 331-261-30
List price: €742.00 Offer price: €575.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

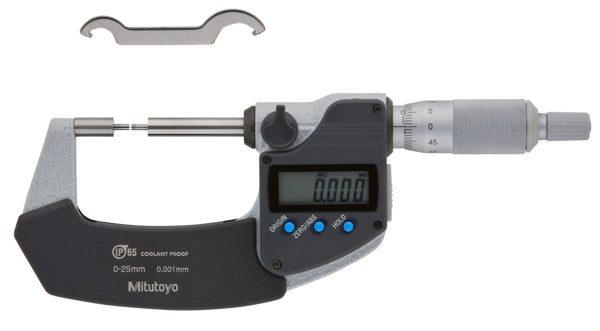

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

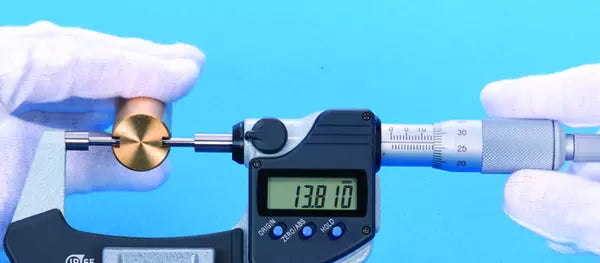

  • Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Features
Digital/Analog:
Digital
Delivered:

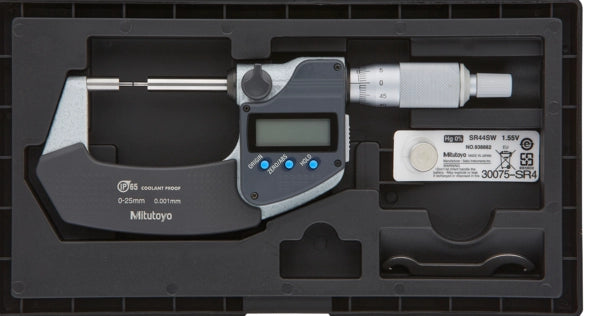

Including box, spanner, 1 SR44 battery
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type B, D=2 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
330 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
