Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil 389-361-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil 389-361-30

Name: Mitutoyo Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil 389-361-30
Brand: Mitutoyo
SKU: 389-361-30
Price: 521.0 EUR
Availability: InStock

MitutoyoSKU: 389-361-30

Price:

€521.00 €693.98

Quantity:

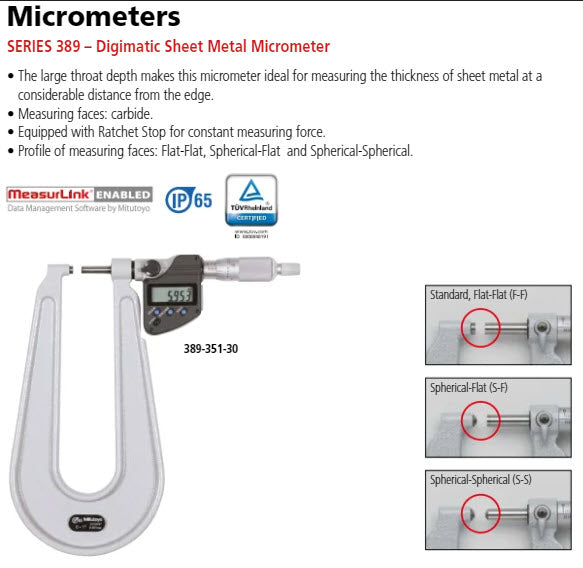

This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

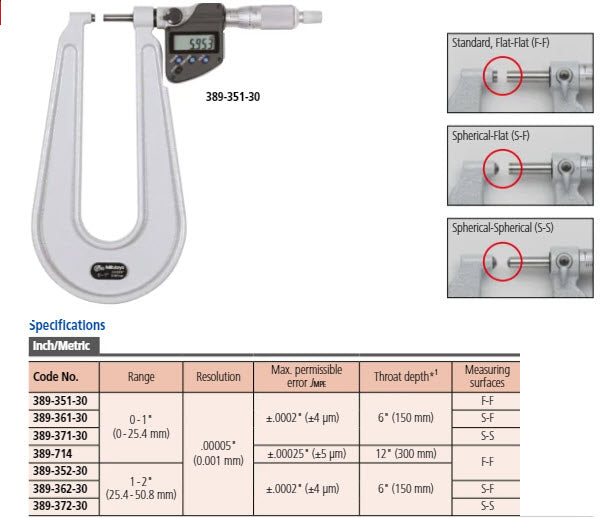

Product Information
Part Number	389-361-30
Measuring Range	0-25mm/0-1"
Resolution	.001mm/.00005"
Accuracy	["± .004mm/.00016\""]
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	8+/-0.8N
Type	Sheet Metal
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Flatness	.0006mm/.000024"
Parallelism	.004mm/.00016"
Calibration Code	CAL9 B1

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1 "/0-25mm
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0002"/.005mm
Flatness:	0,000024"/.006mm
Parallelism:	0,00012"/.003mm
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish

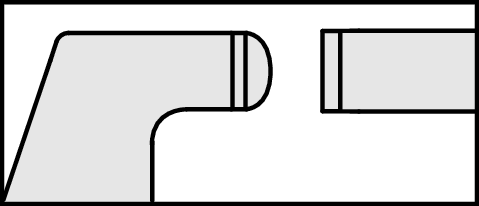

Anvil / Spindle:	Type B, spherical/flat
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	Battery SR-44
Battery life:	Approx. 2.4 years, Approx. 1.8 years (389-514)
Delivered:	Including box. key, 1 battery
