Mitutoyo SKU: 389-714
List price: €1,376.00 Offer price: €1,067.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

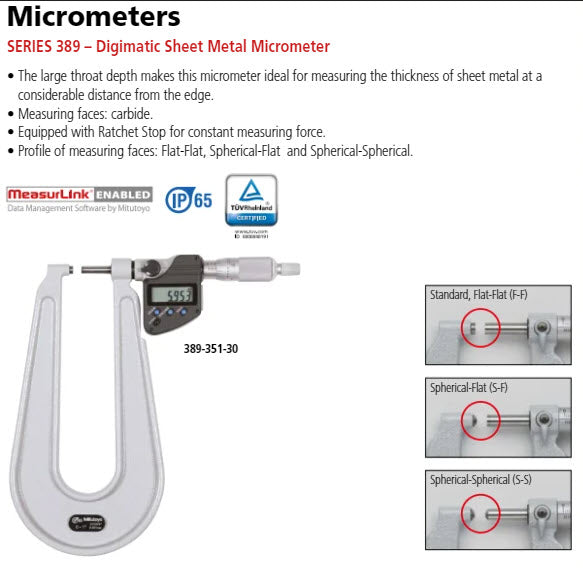

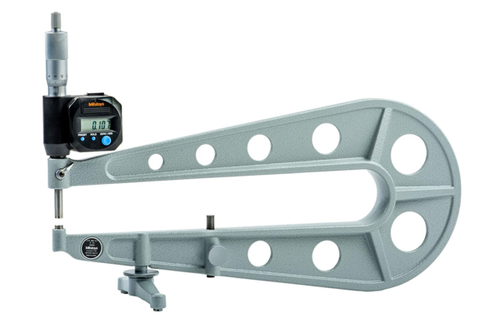

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The extra-deep frame (305mm / 12") enables measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard deep-frame micrometer. A ratchet stop guarantees repeatable measurement. Digimatic data output.

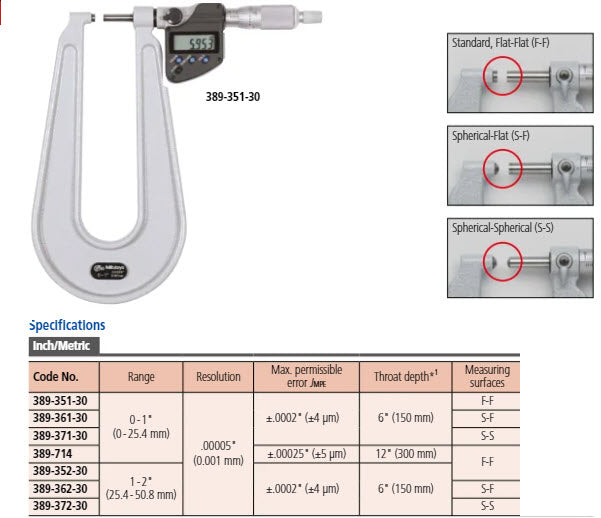

Specification
Digital/Analog:
Digital
Delivered:

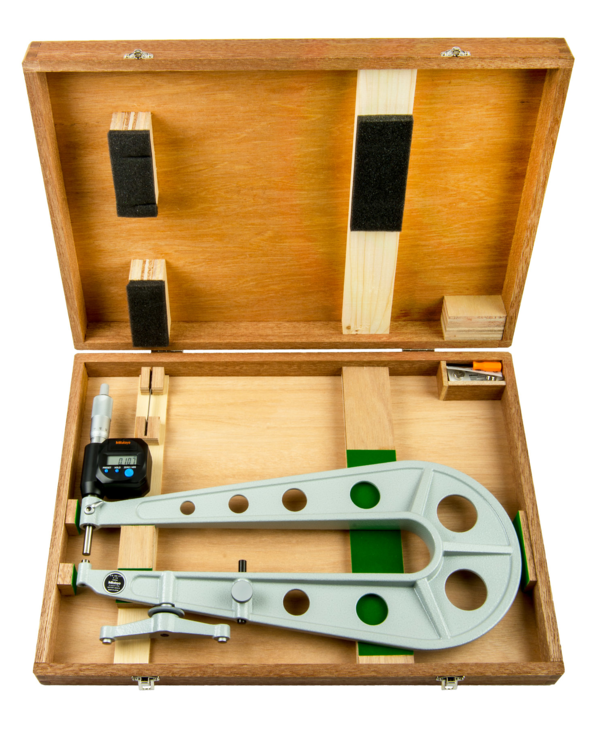

Including box, spanner, 2 SR44 batteries
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00025"/.006mm
Flatness:
0,00004"/.001mm
Parallelism:
0,00012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type A, flat/flat
Measuring spindle:
With spindle lock, throat depth ≤ 150 mm : ø 6,35 mm
throat depth =300 mm : ø 8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 - 14 N
Power supply:
2 batteries SR-44
Battery life:
Approx. 2.4 years, Approx. 1.8 years (389-514)
Delivered:
Including box. key, 2 batteries
