Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 75-100mm3-4", 30° Tip 342-364-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 75-100mm3-4", 30° Tip 342-364-30

Name: Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 75-100mm3-4", 30° Tip 342-364-30
Brand: Mitutoyo
SKU: 342-364-30
Price: 657.91 EUR
Availability: InStock

MitutoyoSKU: 342-364-30

Price:

€657.91 €901.25

Quantity:

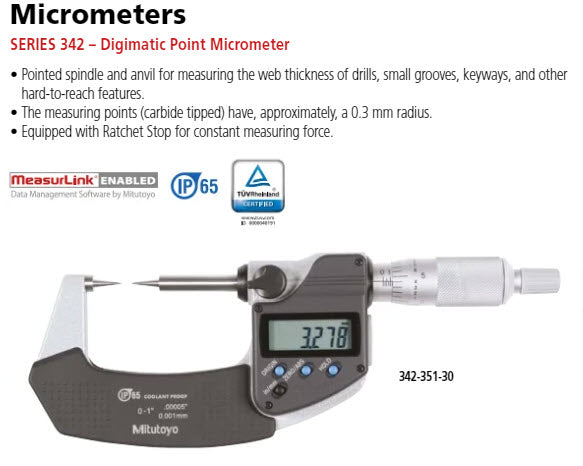

This Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:

Its pointed anvil and spindle has a choice of included angle,
ending in small-radius contact points.

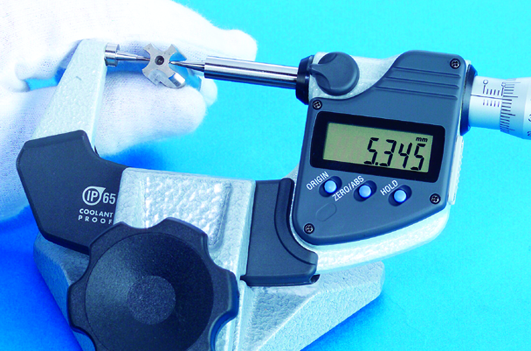

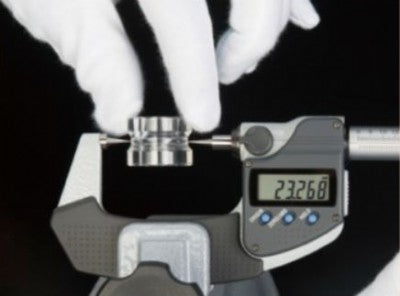

You can use it to measure grooves, steps and similar.

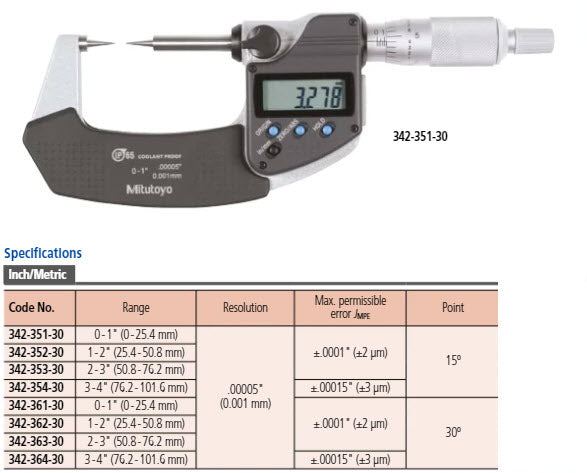

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	3 - 4 "/75-100mm
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,00015"/.004mm
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide pointed spindle and anvil, measuring point radius 0.3 mm

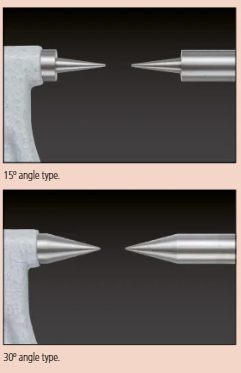

Tip:	30°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, key, 1 battery, setting standard (from 25 mm upward)
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	565 g

Product Information
Part Number	342-364-30
Measuring Range	75-100mm/3-4"
Resolution	.001mm/.00005"
Accuracy	["±.003mm/.00015\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	3-8N
Type	Point
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Both anvil and spindle Pointed 30°
Calibration Code	CAL9 B1
