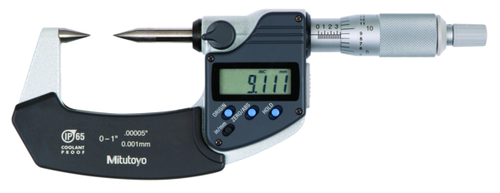

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30

Mitutoyo Digital Point Micrometer IP65 Inch/Metric, 0-25mm/ 0-1", 30° Tip 342-361-30

Mitutoyo SKU: 342-361-30
List price: €640.00 Offer price: €448.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

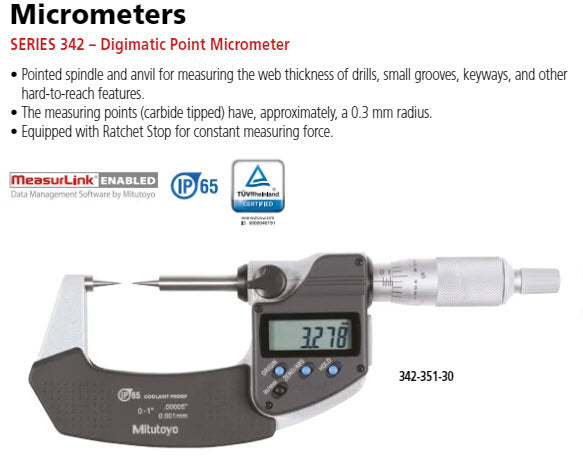

This Digimatic Point Micrometer features a pointed anvil and
spindle, and offers the following benefits:

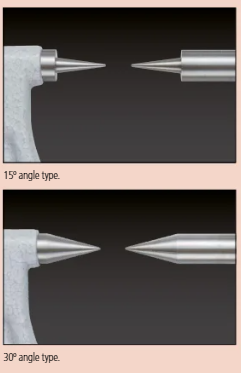

  • Its pointed anvil and spindle has a choice of included angle,
    ending in small-radius contact points.

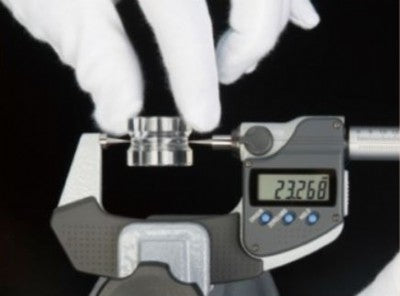

  • You can use it to measure grooves, steps and similar.

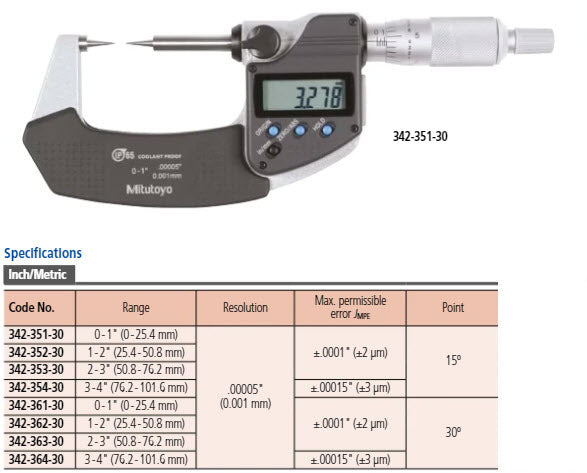

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0001"/.0025mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide pointed spindle and anvil, measuring point radius 0.3 mm
Tip:
30°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, key, 1 battery, setting standard (from 25 mm upward)
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
330 g
