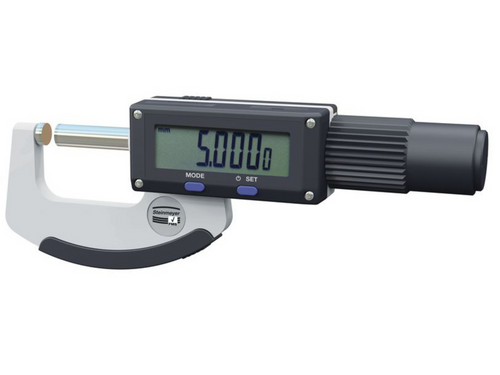

Digital micrometer with non-rotating spindle 75-105mm 76 0800 004 20
Roll over image to zoom in Click on image to zoom
Digital micrometer with non-rotating spindle 75-105mm 76 0800 004 20

Digital micrometer with non-rotating spindle 75-105mm 76 0800 004 20

Steinmeyer SKU: 76 0800 004 20
Price: €1,080.25 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Digital micrometer 0800 with non-rotating spindle 75-105mm 76 0800 004 20

View Data Sheet

View Product Brochure

Technical Data

  • Switchable resolution 10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“
  • Spindle pitch 2 mm
  • Spindle type Non-rotating
  • Measuring force by ratcher approx. 7 N
  • Measuring surface diameter 8 mm
  • Repeatability 0,5 µm
  • Height 7 segment display 12 mm
  • Interface Proximity (Sylvac)
  • Surface flatness < 0,3 µm
  • Parallelism of surface < 0,5 µm
  • Protection class IP65
  • Software functions MIN MAX, MIN-MAX Mem., HOLD, Present with knob
