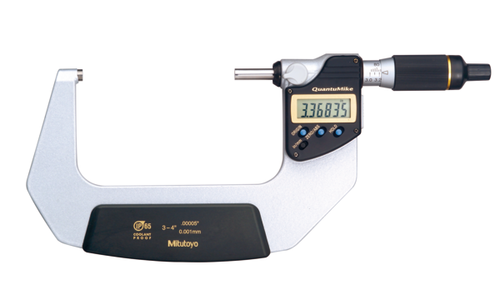

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 75-100mm/3-4" 293-188-30 Without OutPut

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 75-100mm/3-4" 293-188-30 Without OutPut

Name: Mitutoyo Digital Micrometer QuantuMike IP65 Inch/Metric, 75-100mm/3-4" 293-188-30 Without OutPut
Brand: Mitutoyo
SKU: 293-188-30
Price: 329.0 EUR
Availability: InStock

MitutoyoSKU: 293-188-30

Price:

€329.00 €470.00

Quantity:

Click for PDF

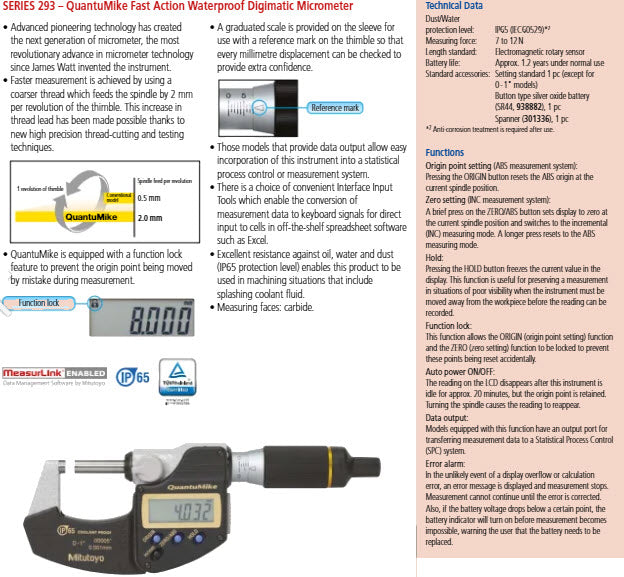

A rapid action, Mitutoyo waterproof digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.

Product Information
Part Number	293-188-30
Measuring Range	75-100mm/3-4"
Resolution	.001mm/.00005"
Accuracy	["+/-.002mm/.0001\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	No
IP Rating	["IP65"]
Type	Standard

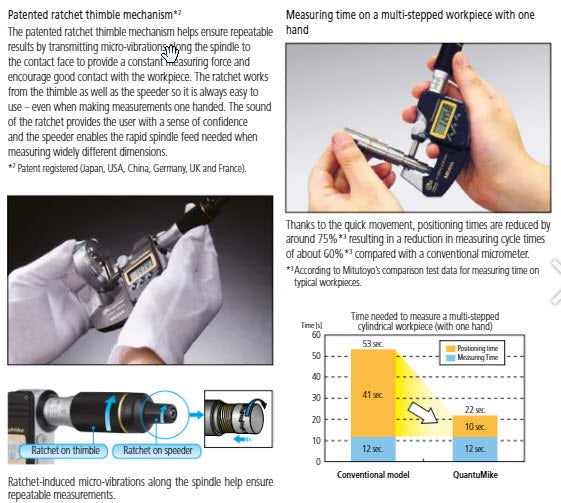

Constant Force Device	Ratchet Thimble
Flatness	0.0003mm/ 0.000012"
Parallelism	.002mm/.00008"
Calibration Code	Cal1B1

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	3 - 4 "/75-100mm
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.0001"
Flatness:	0.000012"
Parallelism:	0.00008"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:	Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:	7 - 12 N
Power supply:	1 battery SR44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	620 g
