Mitutoyo SKU: 293-181-30
List price: €458.00 Offer price: €355.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Click for PDF

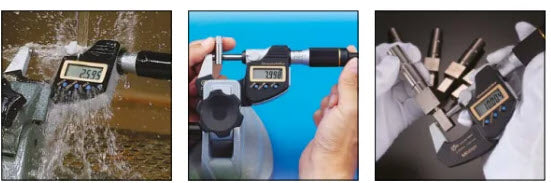

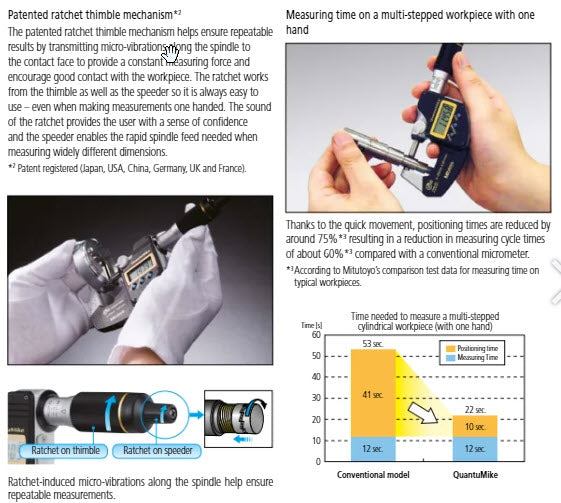

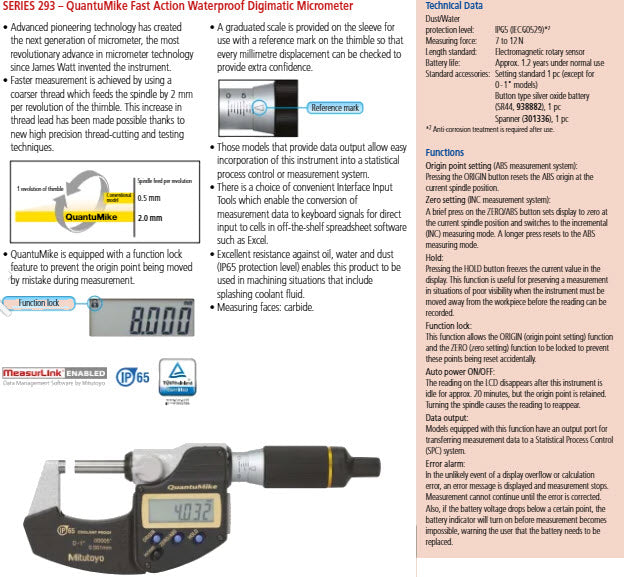

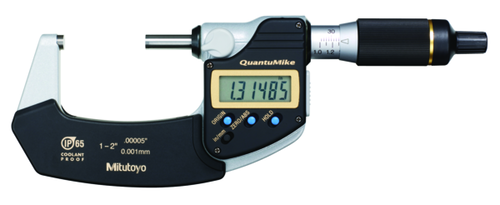

A rapid action, Mitutoyo waterproof digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, setting standard
Inch-Metric:
Inch/Metric
Range:
25-50mm/1-2"
Digital step:
0.00005"/0.001 mm
Max.
Permissible Error
J MPE:
±0.0001"
Flatness:
0.000012"
Parallelism:
0.00008"
Data output:
Yes
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:
Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:
7 - 12 N
Power supply:
1 battery SR44
Battery life:
Approx. 2.4 years
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
465 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
