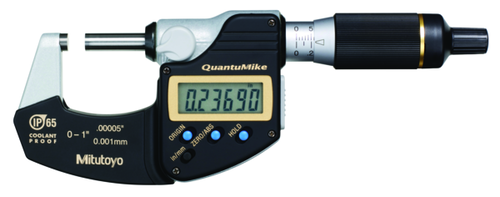

Mitutoyo SKU: 293-185-30
List price: €276.90 Offer price: €179.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

PDF Click here

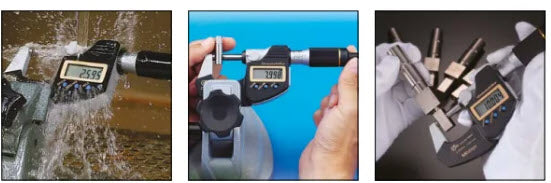

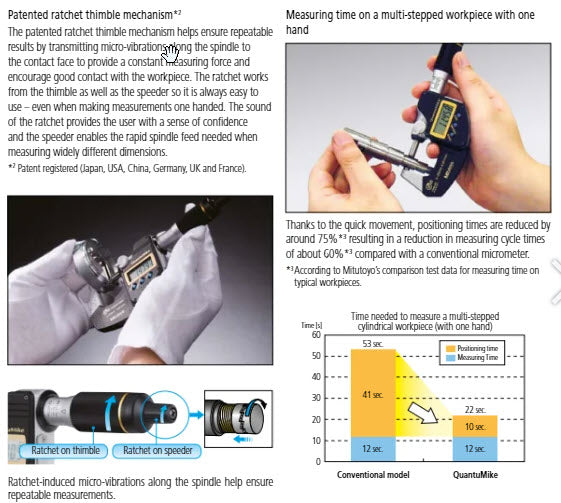

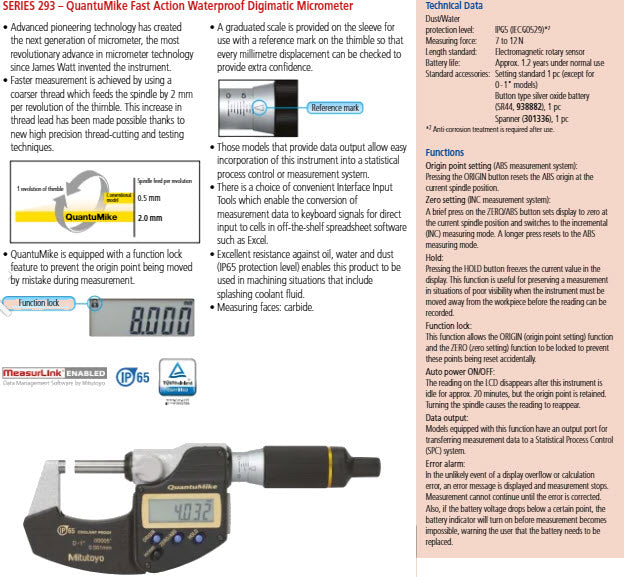

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.

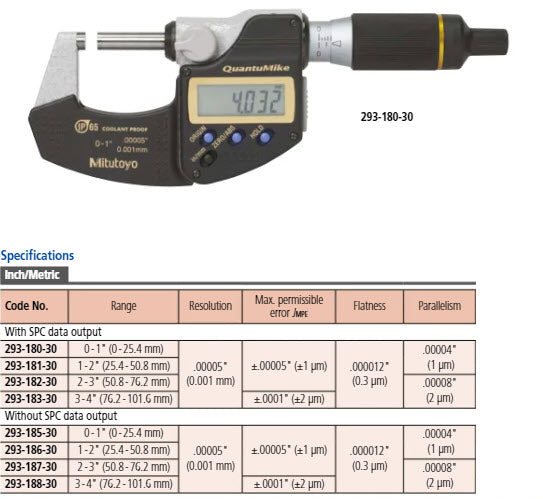

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0.00005"/0.001 mm
Max.
Permissible Error
J MPE:
±0.00005"
Flatness:
0.000012"
Parallelism:
0.00004"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35mm, spindle pitch 2 mm
Scale:
Thimble and sleeve satin chrome finish, ø19.3 mm
Measuring force:
7 - 12 N
Power supply:
1 battery SR44
Battery life:
Approx. 2.4 years
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
265 g
