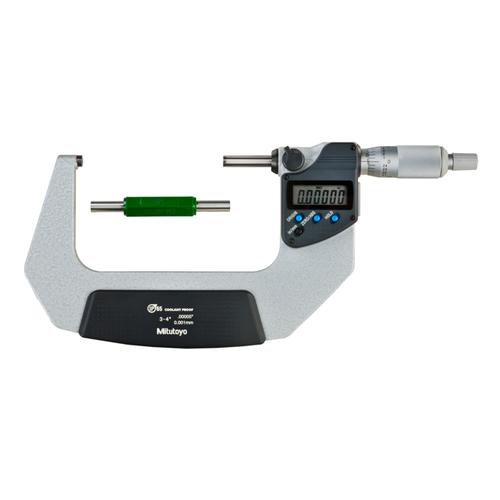

Mitutoyo Digital Micrometer IP65, Inch/Metric 75-100mm/3-4", with output Item number: 293-333-30 Ratchet Stop

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 75-100mm/3-4", with output Item number: 293-333-30 Ratchet Stop

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 75-100mm/3-4", with output Item number: 293-333-30 Ratchet Stop
Brand: Mitutoyo
SKU: 293-233-30
Price: 350.4 EUR
Availability: InStock

MitutoyoSKU: 293-233-30

Price:

€350.40 €480.00

Quantity:

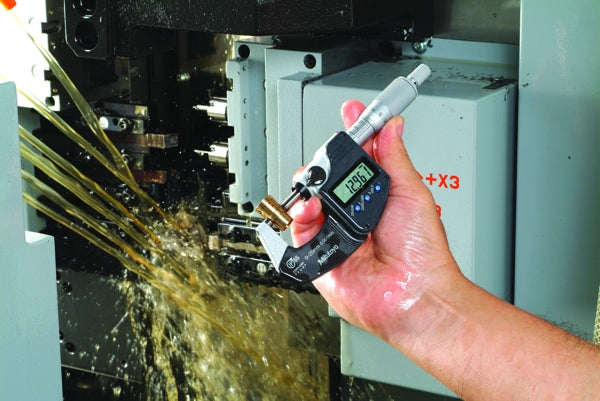

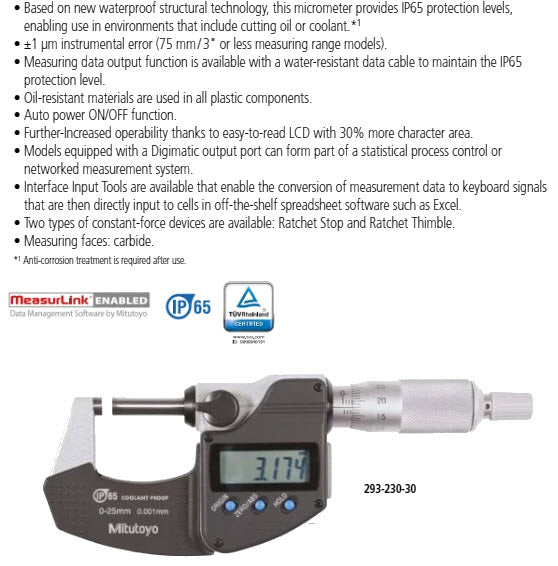

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

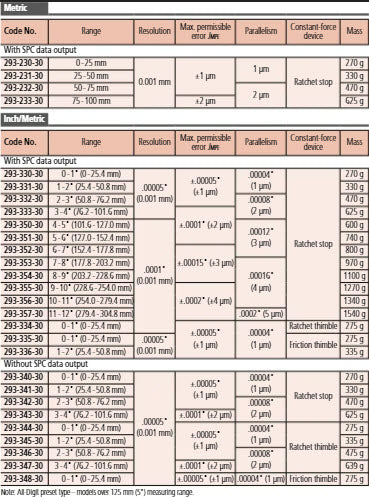

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Digital step:	0.001 mm
Max. Permissible Error J MPE:	±2 µm
Flatness:	0.3 µm
Parallelism:	2 µm
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤100 mm 1.2 years for >100 mm

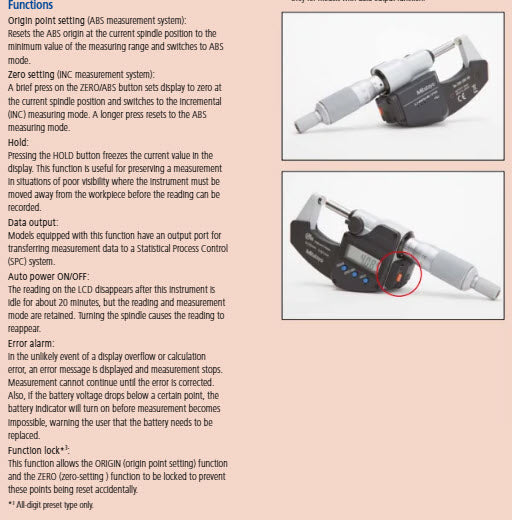

ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	625 g

Product Information
Part Number	293-233-30
Measuring Range	75-100mm/3-4"
Resolution	.001mm/.00005"
Accuracy	["+/-.002mm"]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	5-10N
Type	Standard

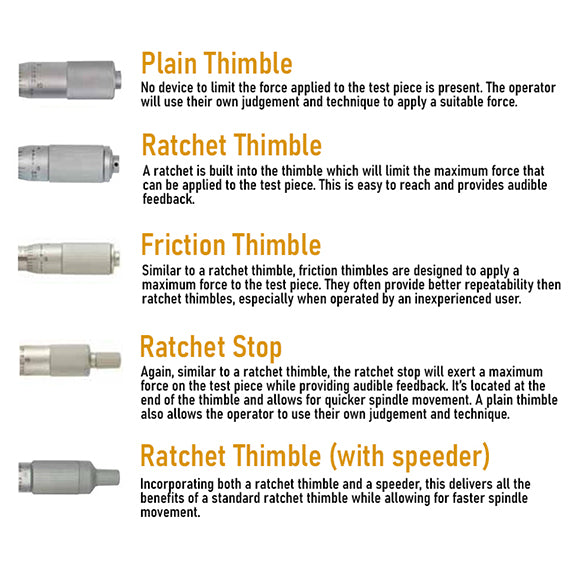

Constant Force Device	Ratchet Stop
Flatness	.0003mm
Parallelism	.002mm/.00008"
Calibration Code	Cal1B1
