Mitutoyo SKU: 293-789
List price: €1,138.00 Offer price: €882.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

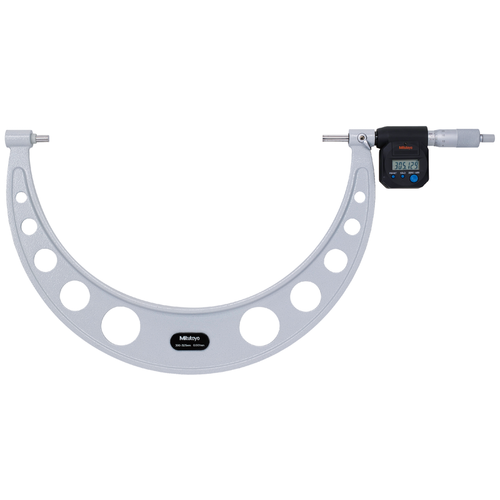

This Wide Measuring Range Digimatic Micrometer with data output offers the
following benefits:

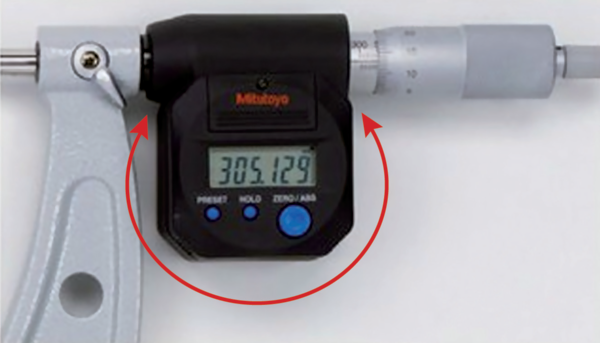

  • The micrometer‘s 330° rotatable display unit enables easy reading in all measurement positions.
  • With Carbide-tipped measuring faces
Features
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, setting standard
Inch-Metric:
Inch/Metric
Range:
19 - 20 "
Digital step:
0.0001"/0.001 mm
Max.
Permissible Error
J MPE:
±0.0004"
Flatness:
0.000024"
Parallelism:
0.00028"
Data output:
Yes
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0.5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 - 14 N
Power supply:
2 batteries SR-44
Battery life:
Approx. 1.8 years
Delivered:
Including box, setting standard, key, 2 batteries
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
3100 g

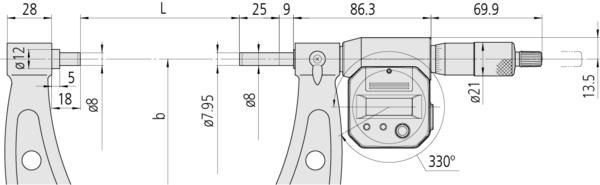

Dimensions

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
