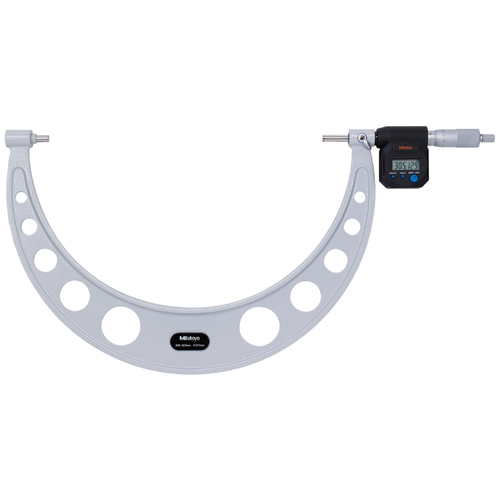

Mitutoyo Digital Micrometer IP65, Inch/Metric 425-450m/17-18", with Output Item number: Ratchet stop 293-787

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 425-450m/17-18", with Output Item number: Ratchet stop 293-787

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 425-450m/17-18", with Output Item number: Ratchet stop 293-787
Brand: Mitutoyo
SKU: 293-787
Price: 828.55 EUR
Availability: InStock

MitutoyoSKU: 293-787

Price:

€828.55 €1,135.00

Quantity:

This Wide Measuring Range Digimatic Micrometer with data output offers the
following benefits:

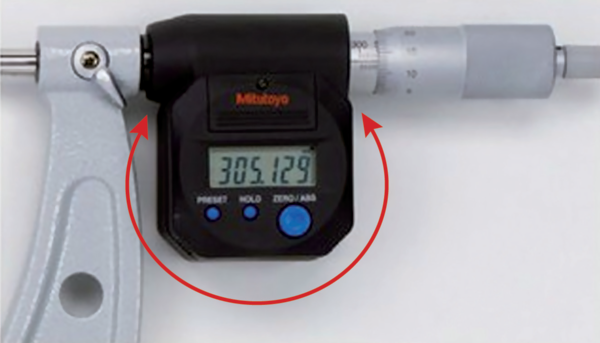

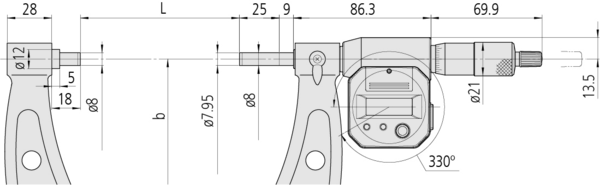

The micrometer‘s 330° rotatable display unit enables easy reading in all measurement positions.
With Carbide-tipped measuring faces

Features

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	17 - 18 "
Digital step:	0.0001"/0.001 mm
Max. Permissible Error J MPE:	±0.00035"
Parallelism:	0.00024"

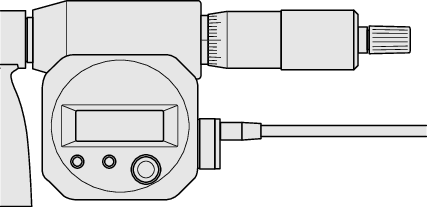

Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø8 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 14 N
Power supply:	2 batteries SR-44
Battery life:	Approx. 1.8 years
Delivered:	Including box, setting standard, key, 2 batteries
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	2750 g

Product Information
Part Number	293-787
Measuring Range	450-475mm/18-19"
Resolution	.001mm/.0001"
Accuracy	["+/-.007mm//.00035\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Type	Standard

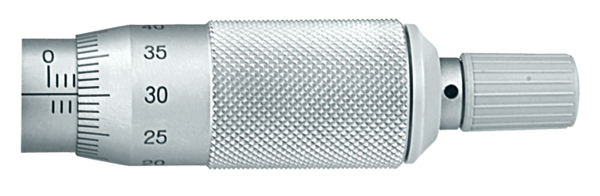

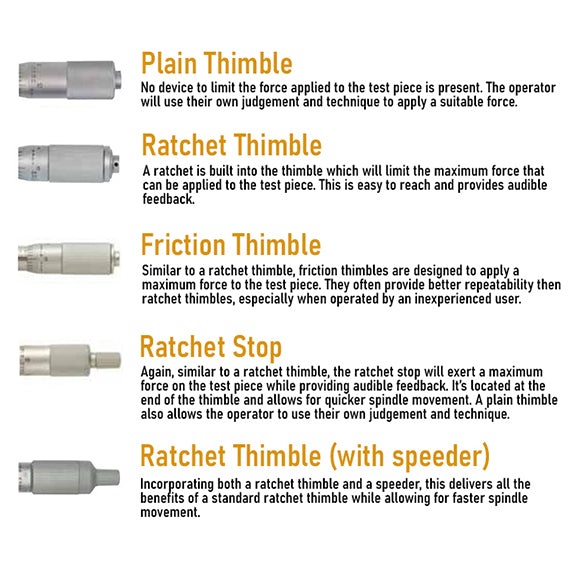

Constant Force Device	Ratchet Stop
Flatness	.0006mm/.000024"
Parallelism	.007/.00028"
Calibration Code	Cal1B1
