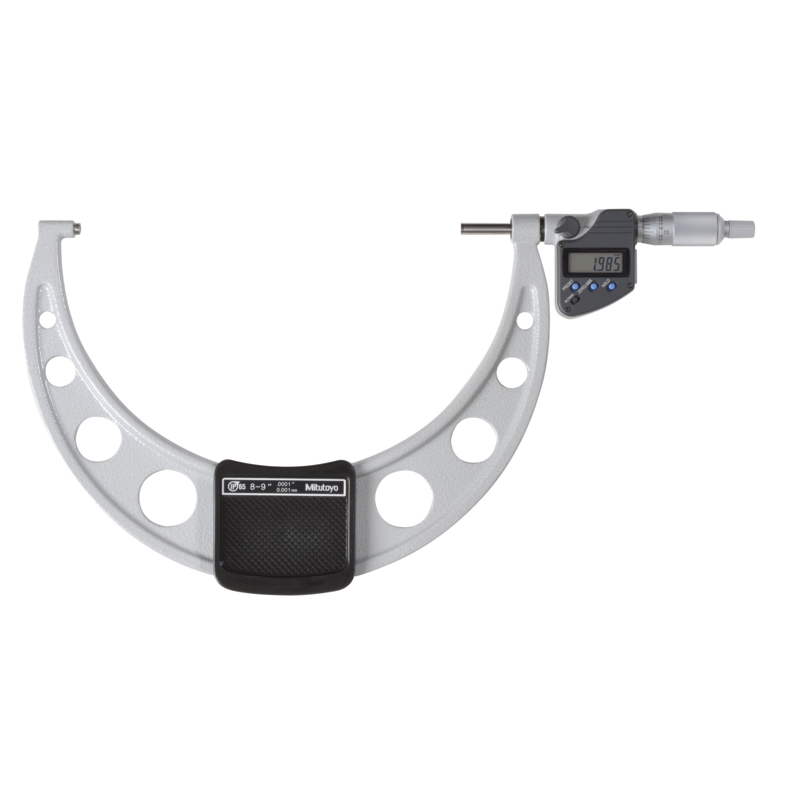

Mitutoyo Digital Micrometer IP65, Inch/Metric 200-225mm/8-9", with Output Item number: 293-354-10 Ratchet Stop

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 200-225mm/8-9", with Output Item number: 293-354-10 Ratchet Stop

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 200-225mm/8-9", with Output Item number: 293-354-10 Ratchet Stop
Brand: Mitutoyo
SKU: 293-354-10
Price: 596.0 EUR
Availability: InStock

MitutoyoSKU: 293-354-10

Price:

€596.00 €795.00

Quantity:

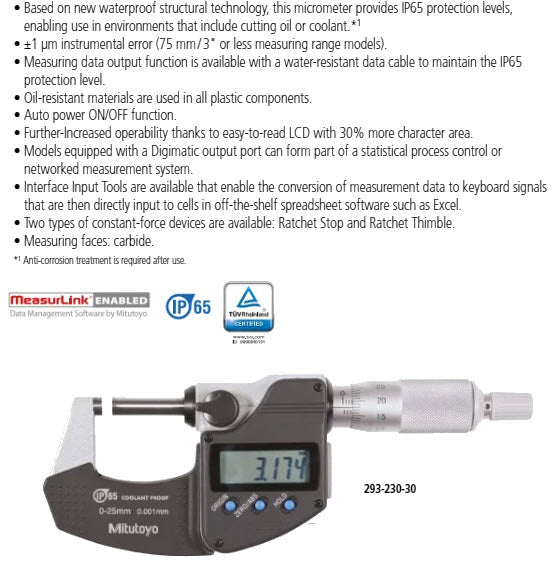

This IP65 Micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of 2,4 years*

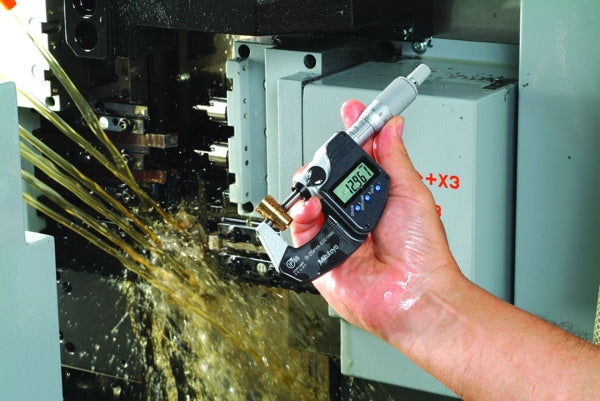

Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.

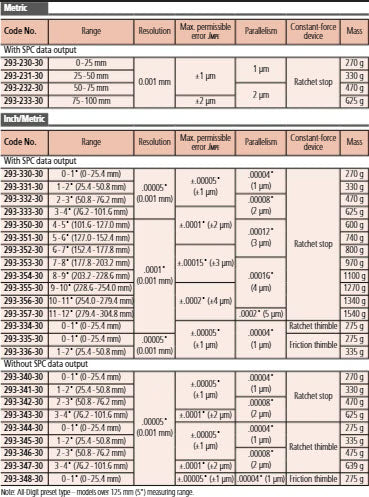

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	8 - 9 "/200-225mm
Digital step:	0,0001"/0,001 mm
Max. Permissible Error J MPE:	±0,00015"
Flatness:	0,000012"
Parallelism:	0,00016"
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤4" 1.2 years for >4"

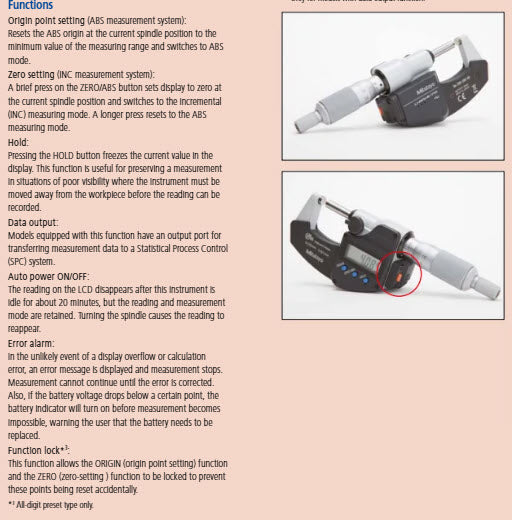

ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	1100 g

Product Information
Part Number	293-354-10
Measuring Range	200-225mm/8-9"
Resolution	.001mm/.0001"
Accuracy	["+/-.004mm/.00016\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	5-10N
Type	Standard

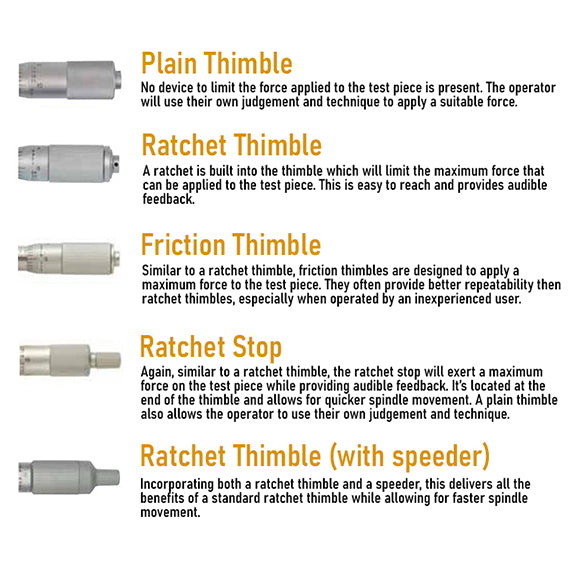

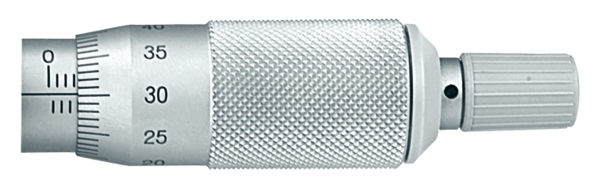

Constant Force Device	Ratchet Stop
Flatness	.0006mm/.000024"
Parallelism	.003mm/.00012"
Calibration Code	Cal1B1
