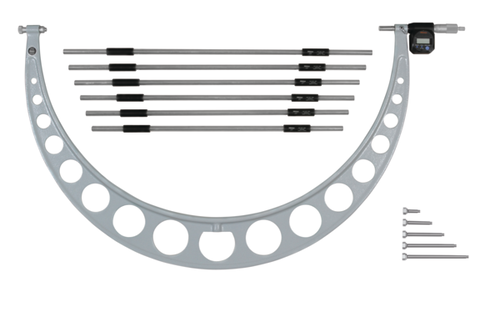

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 750-900mm(30-36"), incl. 6 Anvils 340-723

Mitutoyo SKU: 340-723

List price: €2,225.80 Offer price: €1,558.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand for Micrometer 300-1000mm/12-40" 156-103
Part number: 156-103  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE Connection Cable C Straight, with Data Button 02AZD790C
Part number: 02AZD790C  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable C, Footswitch Straight, with Data Button 02AZE140C
Part number: 02AZE140C  → View product
Digimatic Cable with Data Button Left Type 04AZB512
Part number: 04AZB512  → View product
Digimatic Cable with Data Button Flat L-Shape Left Type 04AZB513
Part number: 04AZB513  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959149
Part number: 959149  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959150
Part number: 959150  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
A Mitutoyo digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement. Digimatic data output.
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 6 anvils, 2 SR44 batteries
Inch-Metric:
Inch/Metric
Range:
30 - 36 "/750-900mm
Digital step:
0,0001"/0,001 mm
Limit of error:
±0,0007"
Spindle feed error:
0.00015 inch
Flatness:
0,00004"
Parallelism:
0,00044"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 - 15 N
Power supply:
Battery SR-44
Battery life:
Approx. 2.4 years for models ≤300 mm
1.8 years for >300 mm
Setting standard:
6 (30, 31, 32, 33, 34, 35")
Interchangeable anvils:
6
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
10.5 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
