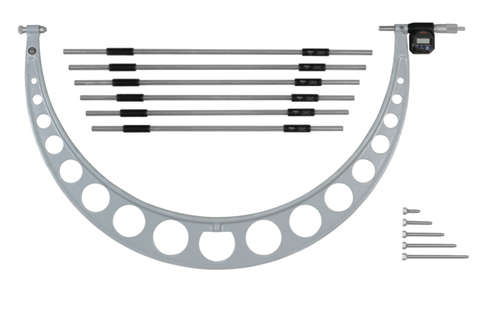

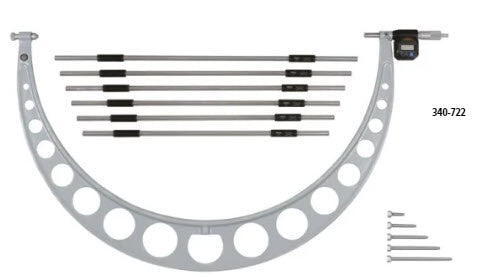

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 600-750mm(24-30"), incl. 6 Anvils 340-722

Mitutoyo SKU: 340-722
List price: €2,080.00 Offer price: €1,456.00 Excluding VAT
A Mitutoyo digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement. Digimatic data output.

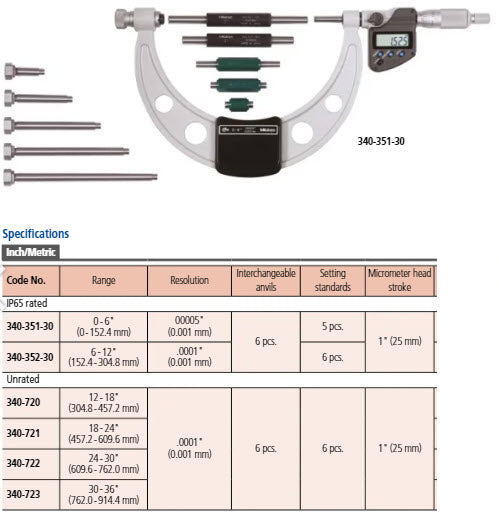

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 6 anvils, 2 SR44 batteries
Inch-Metric:
Inch/Metric
Range:
24 - 30 "/600-750mm
Digital step:
0,0001"/0,001 mm
Limit of error:
±0,0006"
Spindle feed error:
0.00015 inch
Flatness:
0,00004"
Parallelism:
0,0004"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
10 - 15 N
Power supply:
Battery SR-44
Battery life:
Approx. 2.4 years for models ≤300 mm
1.8 years for >300 mm
Setting standard:
6 (24, 25, 26, 27, 28, 29")
Interchangeable anvils:
6
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
7.7 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
