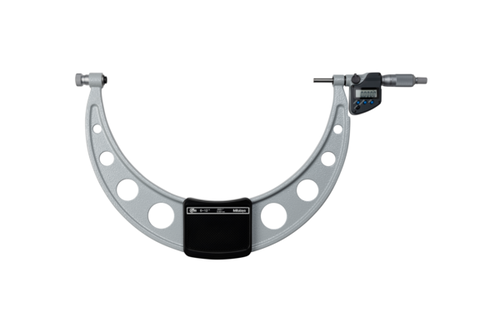

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)

Mitutoyo Digital Micrometer Interchangeable Anvil Inch/Metric, 150-300mm(6-12"), IP65, incl. 6 Anvils 340-352-30 (Inspec Equivalent 106-62-400)

Mitutoyo SKU: 340-352-30
List price: €1,305.90 Offer price: €915.00 Excluding VAT
This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits:
  • Easy, interchangeable anvils allow a wide range of measurements.
  • Ratchet stop for constant force.

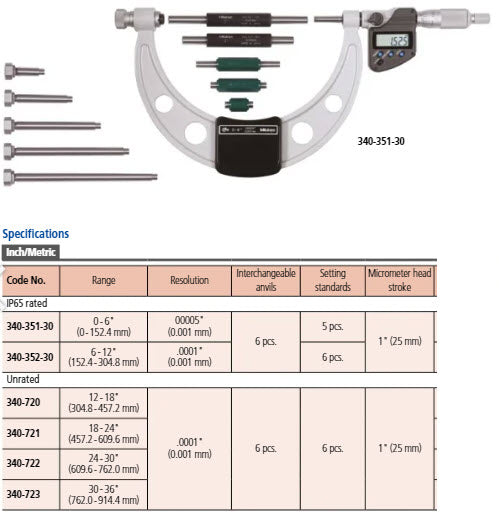

Specification
Digital/Analog:
Digital
Delivered:

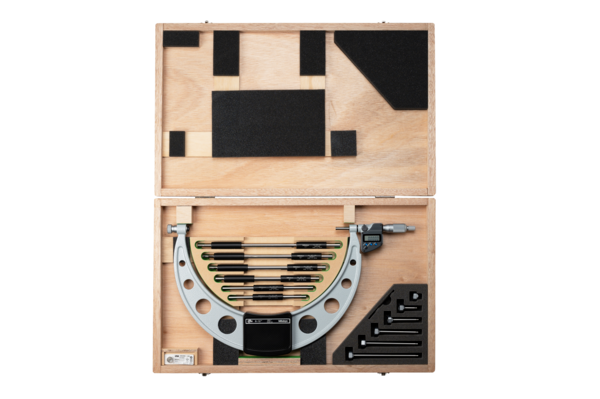

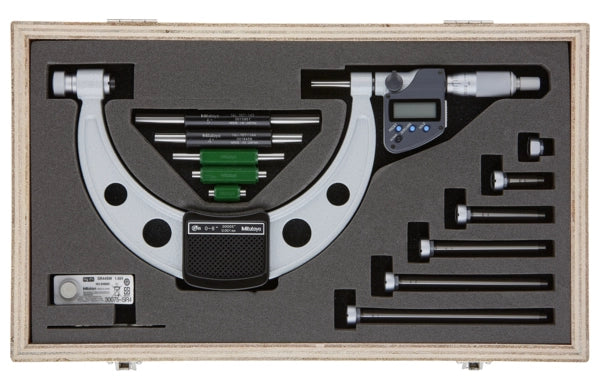

Including box, spanner, setting standard, 6 anvils, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
6 - 12 "/150-300mm
Digital step:
0,0001"/0,001 mm
Limit of error:
±0,0004"
Spindle feed error:
0.00015 inch
Flatness:
0,000024"
Parallelism:
0,0002"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
Battery SR-44
Battery life:
Approx. 2.4 years, Approx. 1.8 years (> 300 mm)

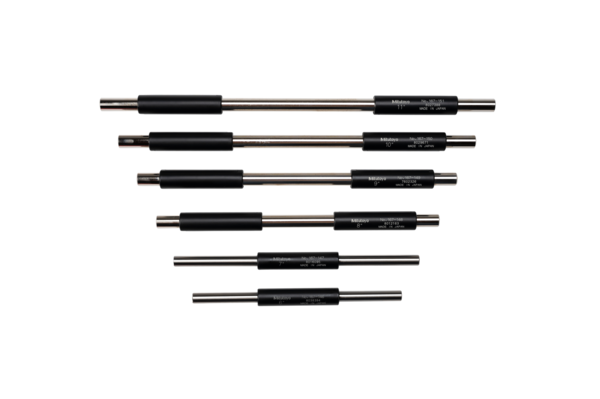

Setting standard:
6 (6, 7, 8, 9, 10, 11")

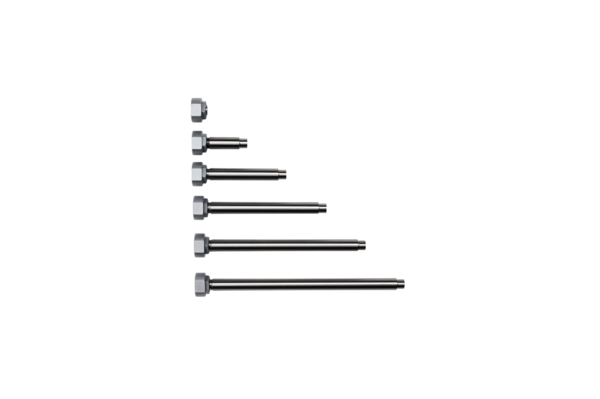

Interchangeable anvils:
6
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
1.88 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
