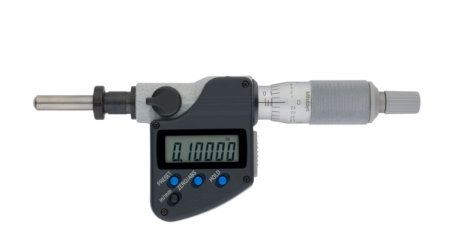

Mitutoyo Digital Micrometer Head 0-1", SR4 Spindle, Cla. Nut, 0,375" Stem 350-354-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer Head 0-1", SR4 Spindle, Cla. Nut, 0,375" Stem 350-354-30

Name: Mitutoyo Digital Micrometer Head 0-1", SR4 Spindle, Cla. Nut, 0,375" Stem 350-354-30
Brand: Mitutoyo
SKU: 350-354-30
Price: 396.0 EUR
Availability: InStock

MitutoyoSKU: 350-354-30

Price:

€396.00 €527.71

Quantity:

Features

Digital/Analog:	Digital
Delivered:	Including spanner, SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"
Spindle end:	Spherical (SR4)
Stem Ø:	0.375" mm
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	11.5 mm
Display:	LCD, character Height 7.5 mm
Measuring face:	Carbide tipped
Measuring spindle:	With spindle lock, ø 6,35 mm
Scale:	Thimble and sleeve satin chrome finish
Power supply:	1 battery SR-44
Battery life:	Approx. 2,4 years
Battery life:	Approx. 2,4 years
Delivered:	With battery SR-44
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	230 g

Product Information
Part Number	350-354-30
Measuring Range	0-1"
Resolution	.001mm/.00005"
Accuracy	["±.002mm"]
Accuracy	+/-.002mm
Display Type	Digital
IP Rating	["IP65"]
Type	Head
Calibration Code	CAL6 B1
