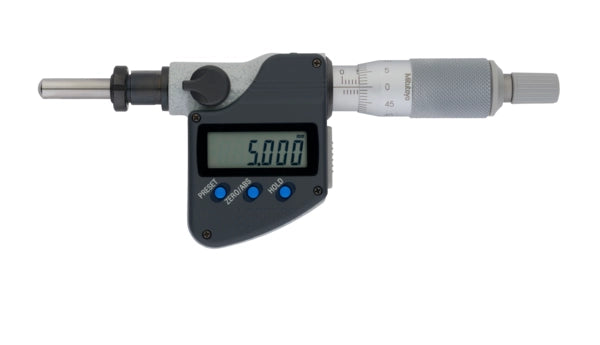

Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30

Name: Mitutoyo Digital Micrometer Head 0-25mm, SR4 Spi., Clamp Nut, 10mm Stem 350-254-30
Brand: Mitutoyo
SKU: 350-254-30
Price: 399.68 EUR
Availability: InStock

MitutoyoSKU: 350-254-30

Price:

€399.68 €547.50

Quantity:

This Micrometer Head has a 25 mm range and a 10 mm stem, and offers the following benefits:

You can integrate it into machinery and measuring instruments.
Measurement values are clearly displayed in 0.001mm increments.
Stem diameter: 10 mm.

Features

Digital/Analog:	Digital
Delivered:	Including spanner, SR44 battery
Inch-Metric:	Metric
Range:	0 - 25 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±2 µm
Spindle end:	Spherical (SR4)
Spindle pitch:	0,5 mm
Stem Ø:	10 mm mm
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	11.5 mm
Display:	LCD, character Height 7.5 mm
Measuring face:	Carbide tipped
Measuring spindle:	With spindle lock, ø 6,35 mm
Scale:	Thimble and sleeve satin chrome finish
Power supply:	1 battery SR-44
Battery life:	Approx. 2,4 years
Battery life:	Approx. 2,4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	230 g

Product Information
Part Number	350-254-30
Measuring Range	0-25mm
Resolution	0.001mm
Unit of Measurement	Metric
Display Type	Digital
Type	Head
Calibration Code	CAL6 B1
