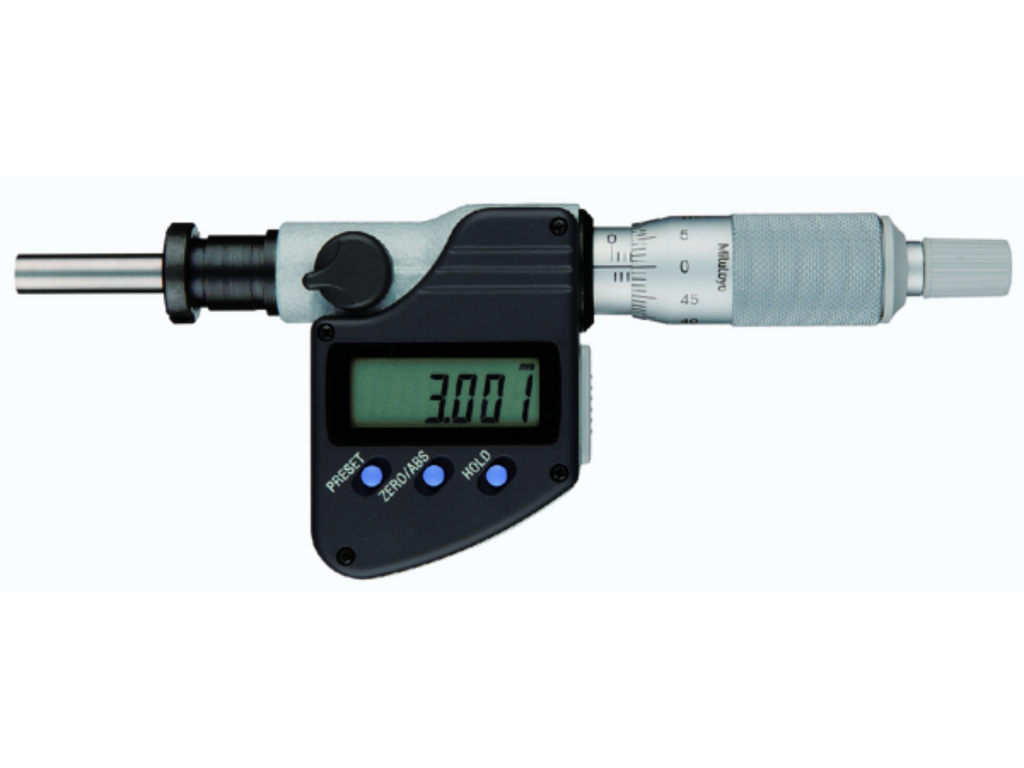

Digital Micrometer Head 0-25mm, Flat Spindle, Clamp Nut, 12mm Stem 350-282-30
Specification- Digital/Analog: Digital
- Inch-Metric: Metric
- Range: 0 - 25 mm
- Digital step: 0,001 mm
- Maximum Permissible Error J MPE: ±2 µm
- Spindle end: Flat
- Spindle pitch: 0,5 mm
- Stem Ø: 12 mm
- Stem: w/ clamp nut
- Fixture thickness for clamp nut: 11.5 mm
- Remarks: IP65
- Display: LCD, character Height 7.5 mm
- Measuring spindle: With spindle lock, ø 6,35 mm
- Scale: Thimble and sleeve satin chrome finish
- Power supply: 1 battery SR-44
- Battery life: Approx. 2,4 years
- Delivered: With battery SR-44
- ABS / INC (INC ZERO): Yes
- Auto Power OFF after 20 min. non use: Yes
- Function lock: Yes
- HOLD: Yes
- 2 x PRESET: Yes
- Mass: 230 g
