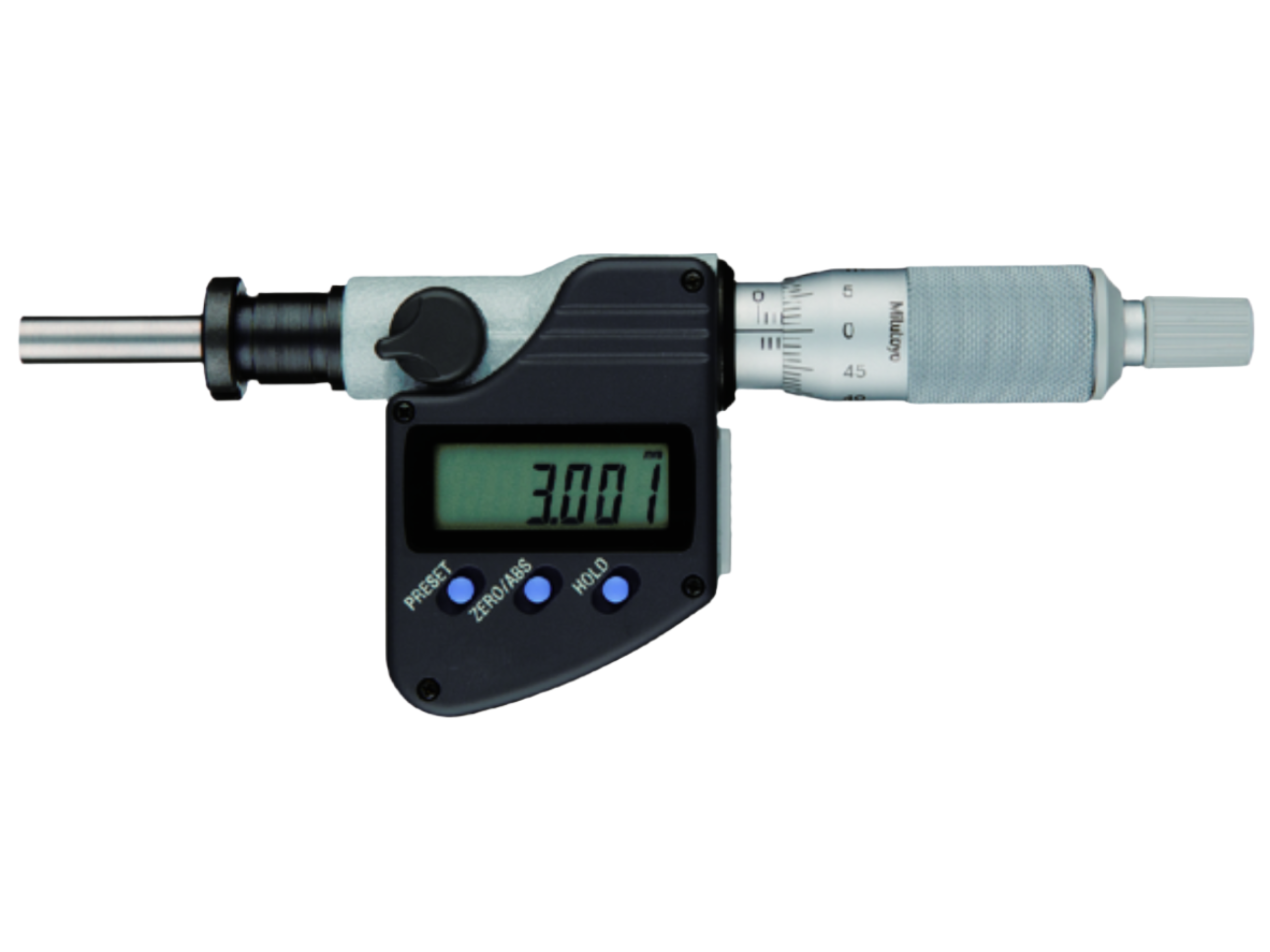

Mitutoyo Digital Micrometer Head 0-25mm, Flat Spindle, Clamp Nut, 10mm Stem 350-252-30

Digital Micrometer Head 0-25mm, Flat Spindle, Clamp Nut, 10mm Stem 350-252-30

View Product Brochure

• Digital/Analog: Digital
• Inch-Metric: Metric
• Range: 0 - 25 mm
• Digital step: 0,001 mm
• Maximum Permissible Error J MPE: ±2 µm
• Spindle end: Flat
• Spindle pitch: 0,5 mm
• Stem Ø: 10 mm
• Stem: w/ clamp nut
• Fixture thickness for clamp nut: 11.5 mm
• Remarks: IP65
• Display: LCD, character Height 7.5 mm
• Measuring spindle: With spindle lock, ø 6,35 mm
• Scale: Thimble and sleeve satin chrome finish
• Power supply: 1 battery SR-44
• Battery life: Approx. 2,4 years
• Delivered: With battery SR-44
• ABS / INC (INC ZERO): Yes
• Auto Power OFF after 20 min. non use: Yes
• Function lock: Yes
• HOLD: Yes
• 2 x PRESET: Yes
• Mass: 230 g

All images are for representation only.
