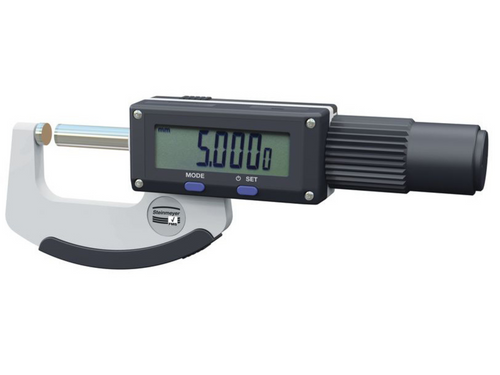

Digital micrometer with non-rotating spindle 25-55mm 76 0800 002 20

Digital micrometer 0800 with non-rotating spindle 25-55mm 76 0800 002 20

View Data Sheet

View Product Brochure

Technical Data

• Switchable resolution 10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“
• Spindle pitch 2 mm
• Spindle type Non rotating
• Measuring force by ratcher approx. 7 N
• Measuring surface diameter 8 mm
• Repeatability 0,5 µm
• Hight 7 segment display 12 mm
• Interface Proximity (Sylvac)
• Surface flatness < 0,3 µm
• Parallelism of surface < 0,5 µm
• Protection class IP65
• Software functions MIN MAX, MIN-MAX Mem., HOLD, Present with knob
