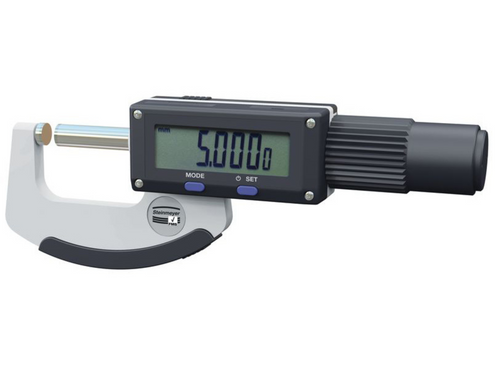

Digital micrometer 0800 with non-rotating spindle 50-80mm 76 0800 003 20
Technical Data
- Switchable resolution 10 µm, 1 µm, 0,5 µm / 0,0005“, 0,00005“, 0,00002“
- Spindle pitch 2 mm
- Spindle type Non rotating
- Measuring force by ratcher approx. 7 N
- Measuring surface diameter 8 mm
- Repeatability 0,5 µm
- Hight 7 segment display 12 mm
- Interface Proximity (Sylvac)
- Surface flatness < 0,3 µm
- Parallelism of surface < 0,5 µm
- Protection class IP65
- Software functions MIN MAX, MIN-MAX Mem., HOLD, Present with knob
