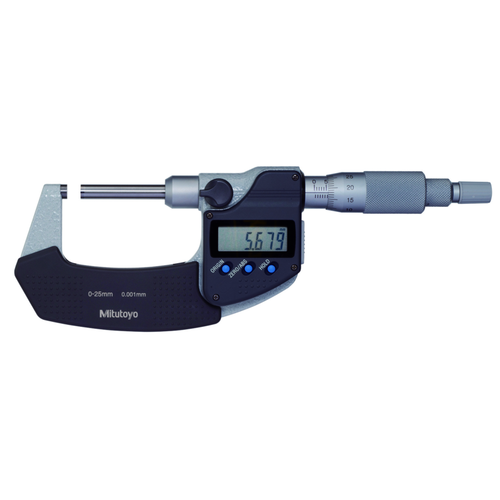

Mitutoyo; Digital Micrometer
This Micrometer features a non-rotating spindle, and offers the following benefits:
- Sliding spindle, not rotating.
- Ratchet stop.
- Data output.
- Range: 0-25mm (0-1″)
- Resolution: 0.001mm (0.00005″)
- Accuracy: ± 0.003mm (0.00015″)
- Flatness: 0.0003mm (0.000012″)
- Parallelism: 0.003mm (0.00012″)
- Ratchet Stop
- Non-rotating spindle
- Carbide measuring faces, micro lap finish
- SPC Data Output
- Battery Life: Approx. 2.4 years
- Hold function
- Auto Power OFF after 20 min non use
- Measuring Spindle: 6.35 mm diameter, 0.635 mm spindle pitch
- Inch/Metric
- Code406-350-30
