Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30

Mitutoyo SKU: 317-352-30
List price: €829.00 Offer price: €643.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

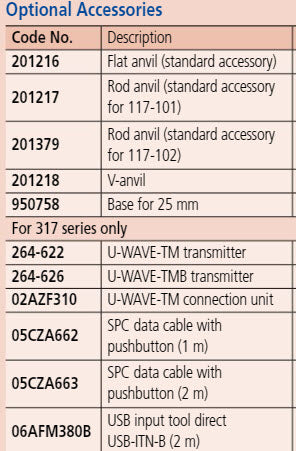

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo 201216 Flat Anvil
Part number: 201379  → View product
Part number: 201216  → View product
Mitutoyo 201379 Cylindrical Anvil 5mm Micrometer Series 117/317
Part number: 201379  → View product
MITUTOYO 201218 Interchangeable V-anvil (117)
Part number: 201218  → View product

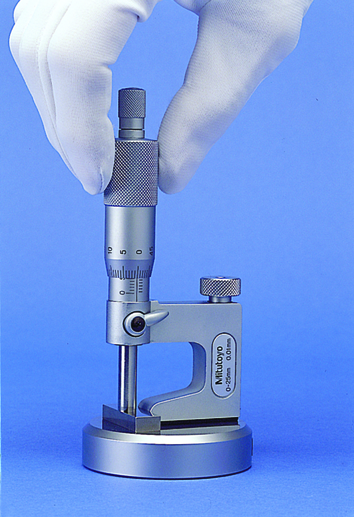

Mitutoyo 950758 Round Base for Series 117/317 for 0-25mm
Part number: 950758  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View productCurrently unavailable

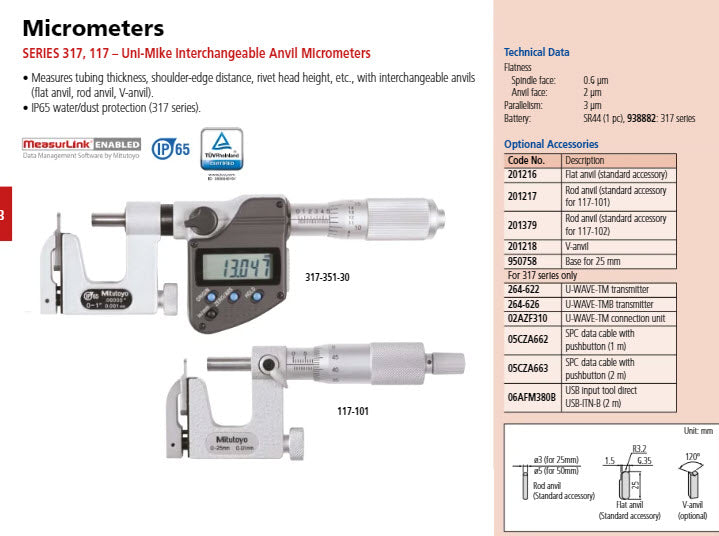

This Digimatic Micrometer Interchangeable Anvil Type lets you
measure a range of different features.
It offers the following benefits:
  • Measures tubing thickness, shoulder edge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil).

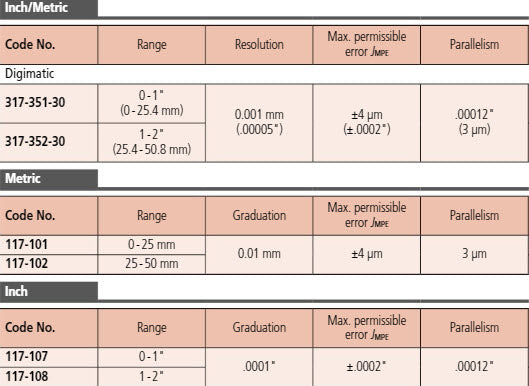

Specification
Digital/Analog:
Digital
Delivered:

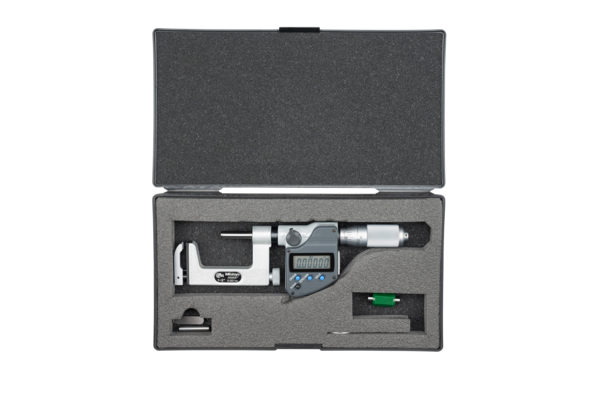

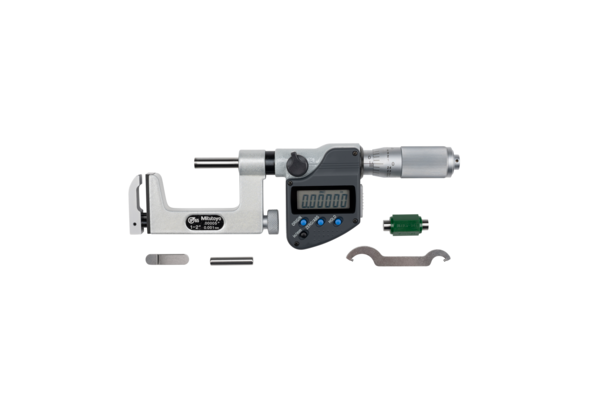

Including box, spanner, setting standard, flat anvil 201216, rod anvil 201379
Inch-Metric:
Inch/Metric
Range:
1 - 2 "
Digital step:
0,00005"/0,001 mm
Spindle feed error:
0.00015 inch
Flatness:
0,000024" (spindle), 0,00008" (anvil)
Parallelism:
0,00012"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Content of Set:
Anvils 201379, 201216
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery, anvils
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
365 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 25-50mm/1-2", IP65 317-352-30 Click to open the PDF document
