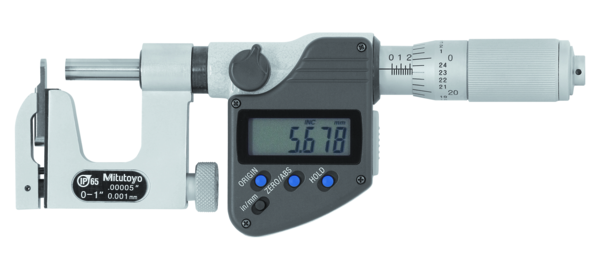

Name: Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 0-25mm/0-1", IP65 317-351-30
Brand: Mitutoyo
SKU: 317-351-30
Price: 512.0 EUR
Availability: InStock

Mitutoyo Digital Interchangeable Anvil Micrometer Inch/Metric, 0-25mm/0-1", IP65 317-351-30

Roll over image to zoom in Click on image to zoom

Photo 1 of 7 More photos — use the arrows

This Digimatic Micrometer Interchangeable Anvil Type lets you
measure a range of different features.
It offers the following benefits:

Measures tubing thickness, shoulder edge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil).

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, flat anvil 201216, rod anvil 201217
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Spindle feed error:	0.00015 inch
Flatness:	0,000024" (spindle), 0,00008" (anvil)
Parallelism:	0,00012"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Content of Set:	Anvils 201217, 201216
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery, anvils
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	340 g
