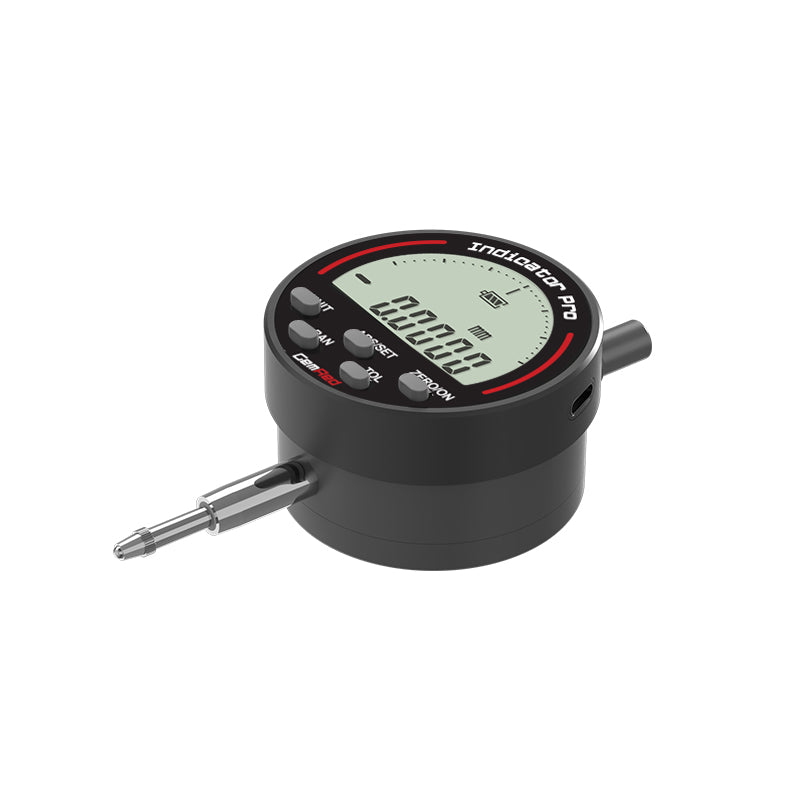

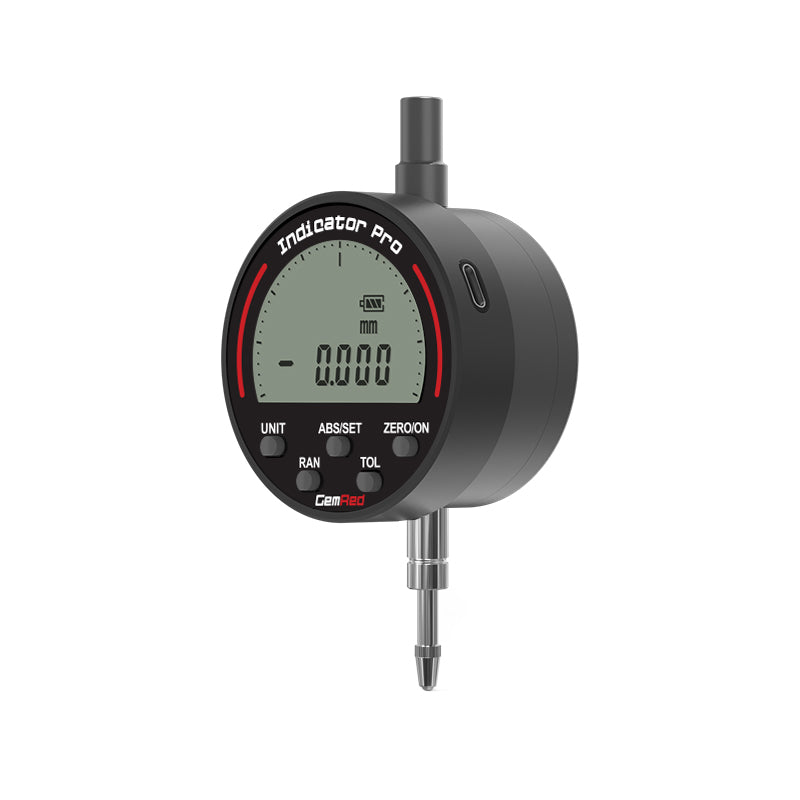

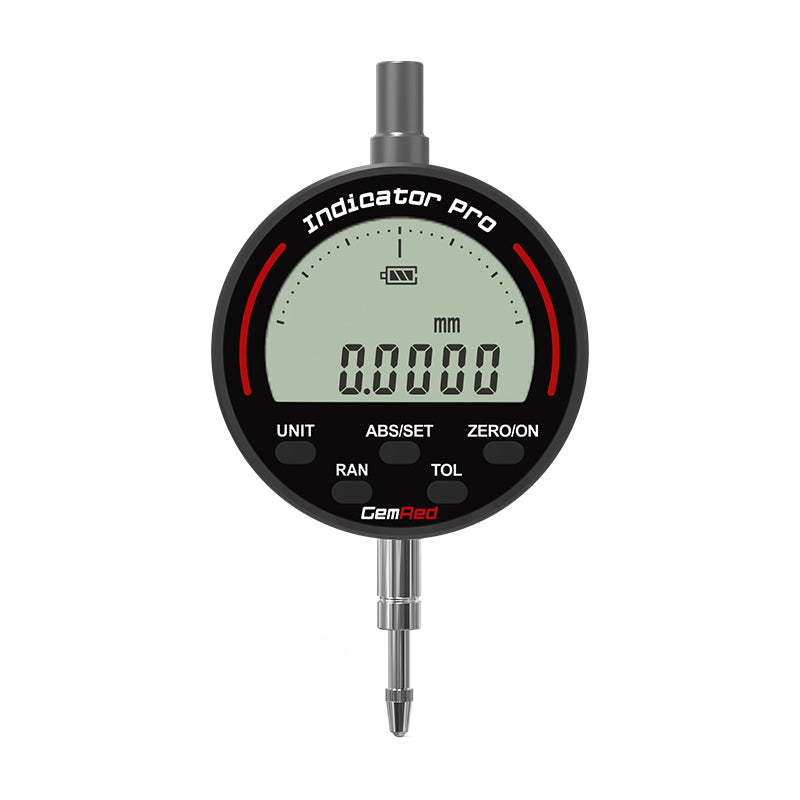

Digital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue tooth
Digital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue tooth
Digital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue tooth
Roll over image to zoom in Click on image to zoom
Digital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue toothDigital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue toothDigital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue tooth

Digital Indicator (P Series) Model: I-DIP-4010B Accuracy 0.003mm Resolution 0.0005mm Measuring Range 12.7mm Repeatability 0.001mm with blue tooth

GemRed SKU: I-DIP-4010B
Price: €300.00 Excluding VAT

Specifications

Accuracy 0.003mm
Resolution 0.0005mm
Measuring Range 12.7mm
Backhaul Error 0.0015mm
Repeatability 0.001mm
Working Hours ≥1500h
Order No. Measuring Range Resolution Repeatability Max.Error Backhaul Error Bluetooth
I-DIP-4010 12.7mm 0.0005mm 0.001mm 0.003mm 0.0015mm –
I-DIP-4010-(B) 12.7mm 0.0005mm 0.001mm 0.003mm 0.0015mm ●

This tool can measure the difference of tolerance of a roller or shaft directly. Extra large LCD for easy viewing.
With double displays, digital display and electronic scales, Easy to measure batch manufacturer products.

Key Features:

  1. Accurate measurements.
  2. Digital & scale value displayed simultaneously.
  3. Automatic data collection via wireless transmission.
  4. Set tolerances on the PC, and save the measurements for analysis.
  5. Built in high-precision capacitive displacement sensor, with a battery life of1500 hours.

Specifications:

  • Measurement Range: 12.7mm
  • Resolution: 0.0005mm
  • Accuracy: ±0.003mm
  • Backhual Error: 0.0015mm
  • Repeatability: 0.001mm
  • Charging Port: Type-C
  • Dimensions: 63×120×37mm
  • Weight: 170g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
