Mitutoyo SKU: 575-121
Price:
€185.00 €239.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

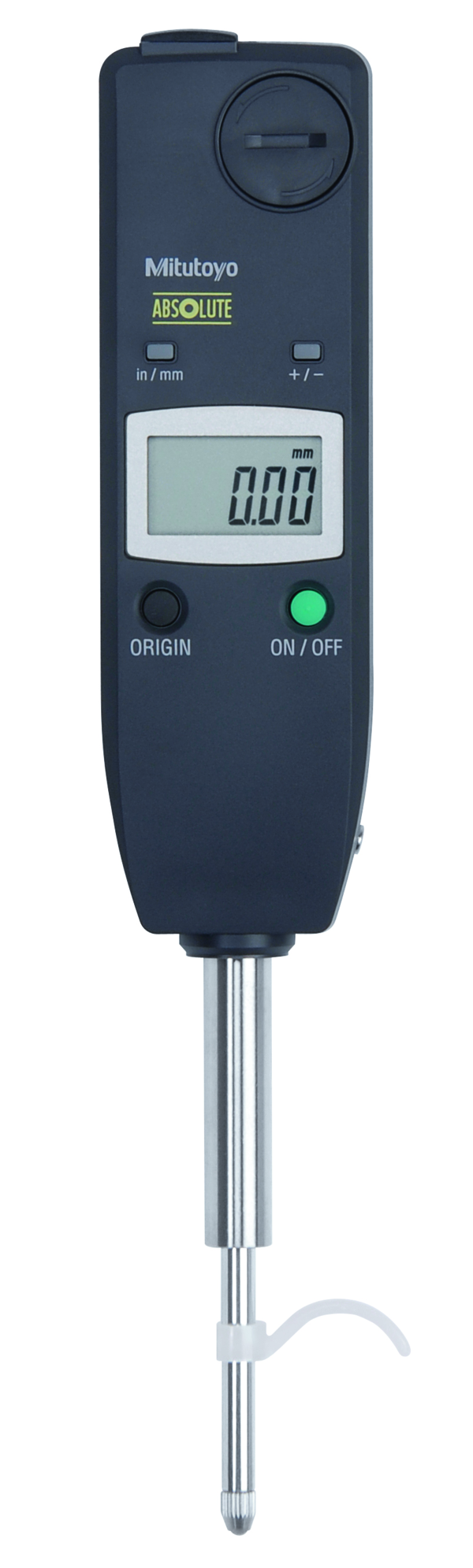

An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

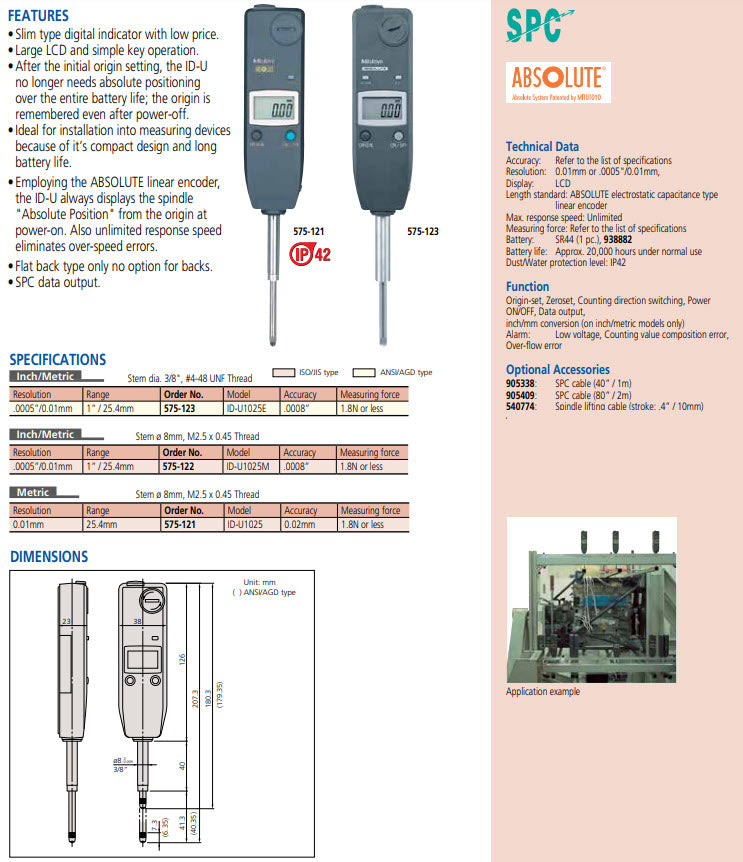

Specification
Digital/Analog:
Digital
Delivered:
In a box with SR44 battery and spindle lifting handle 137693
Range:
25.4 mm
Digital step:
0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.02 mm
R MPE (Repeatability):
0.01 mm
Measuring force MPL:
≤1.8 N
Protection:
IP42
Type:
ASME/ANSI/AGD Standard
Measuring force:
≤ 1,5 N
Mass:
140 g
Display:
LCD, character height 8.5 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 20000 hours
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
